BIGTREETECH SKR V1.3 3D Printer Board 32Bit Control TMC2208 3D Printer Parts VS Ramps 1.4 E3 DIP For Ender 3 TMC2209 MKS GEN L

$18.67 $16.24

SKU: 32981807406 Category:

Description

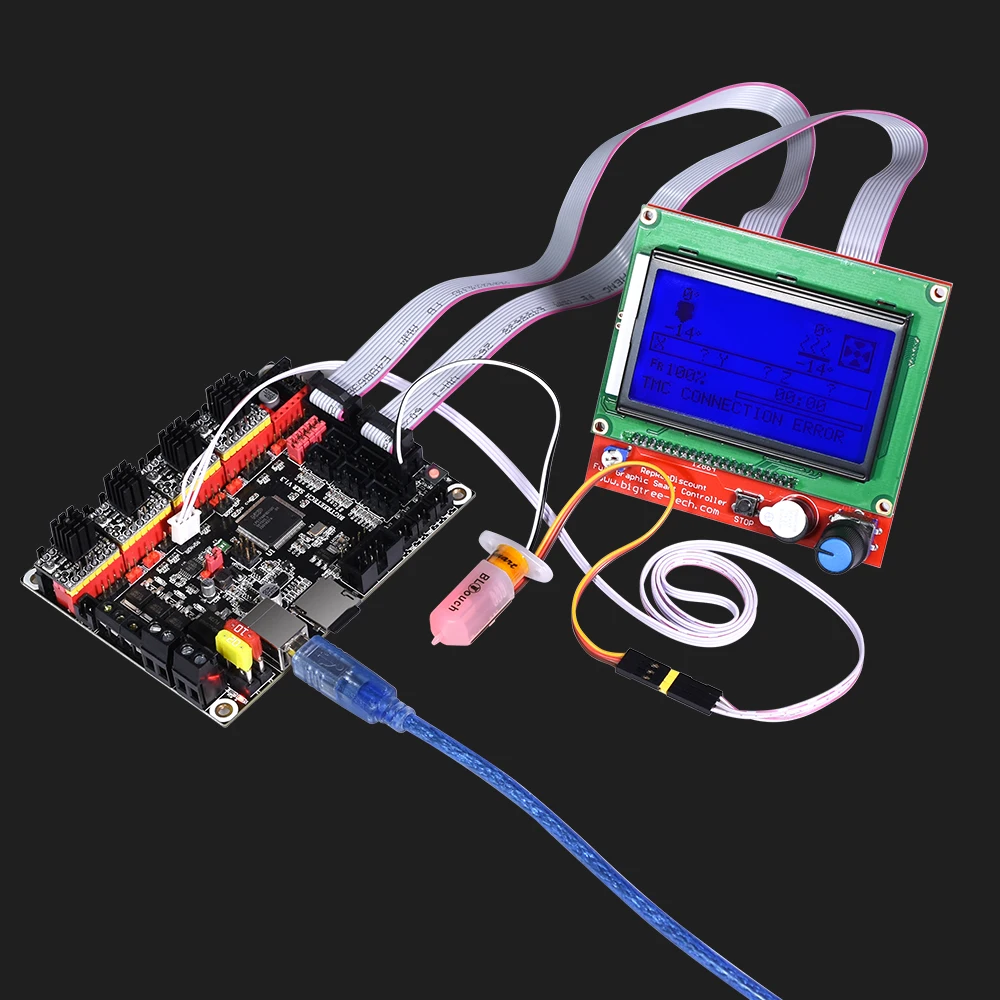

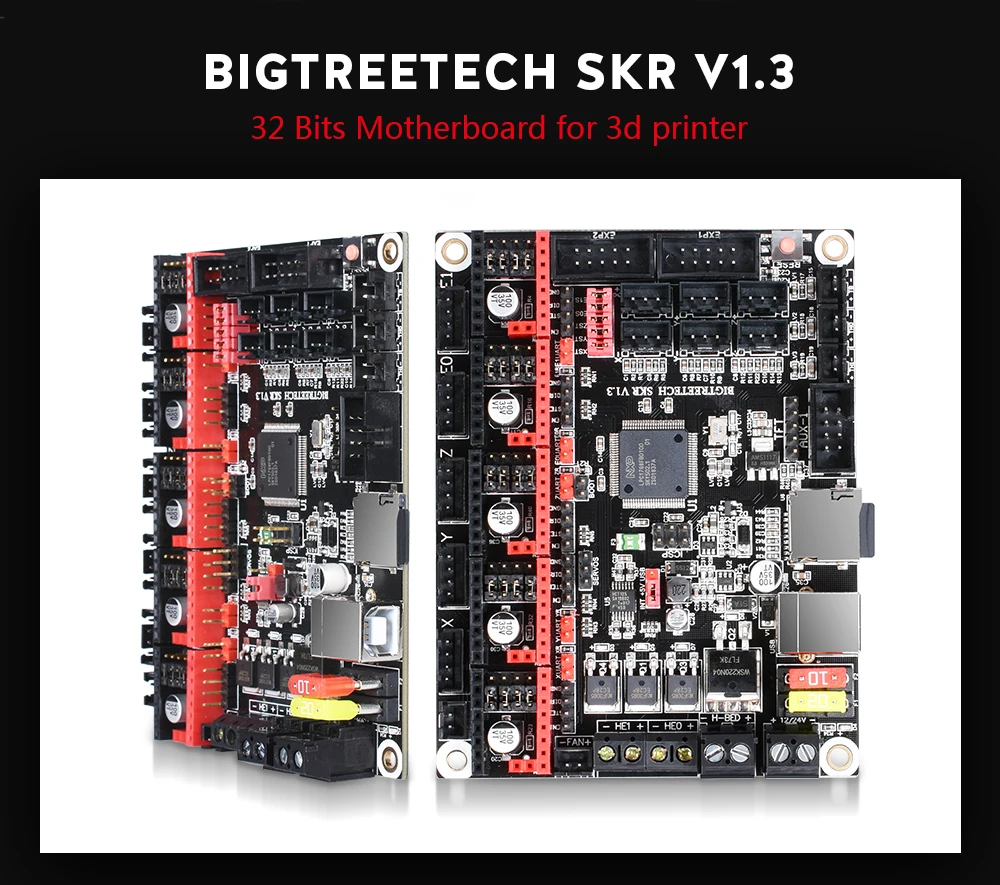

SKR V1.3 32 Bit Motherboard

1.Manual and firmware:

https://github.com/bigtreetech/BIGTREETECH-SKR-V1.3

2.SKR V1.3 Smoothieware Configuration, (Note: The file name cannot be changed. firmware.bin must be lowercase!)

3.SKR V1.3 Marlin2.0 firmware update method:

4.SKR V1.3 YOUTUBE video :

5. We will recommend to choose Marlin2.0, many functions can be used, Smoothieware will limit the use of some features.

Additional information

Brand Name

BIQU

Item Type

Motherboard

Model Number

BIGTREETRECH SKR V1.3 3D Printer Board

Product Name

32-Bit SKR V1.3 Motherboard

Support Firmware

Smootheieware/Marlin2.0

Microprocessor

ARM cortex-M3 CPU

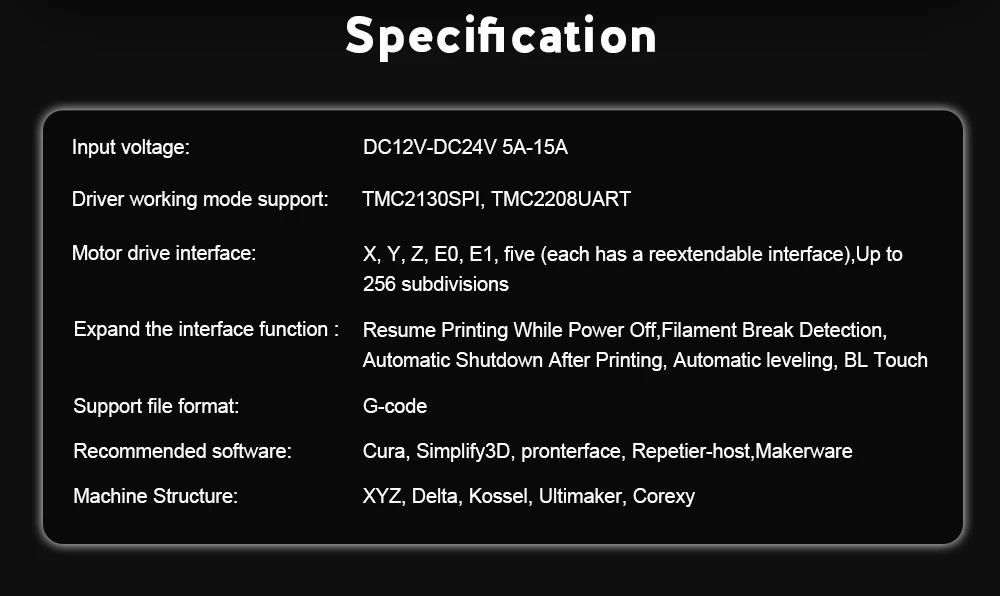

Input voltage

DC12V-DC24V

Input current

5A-15A

Support Stepper Motor Driver

TMC2208/TMC2130/TMC2100/ST820/LV8729/DRV8825/A4988

Support

2004 LCD/12864 LCD/TFT35/TFT28 Touch Screen

Driver working mode support

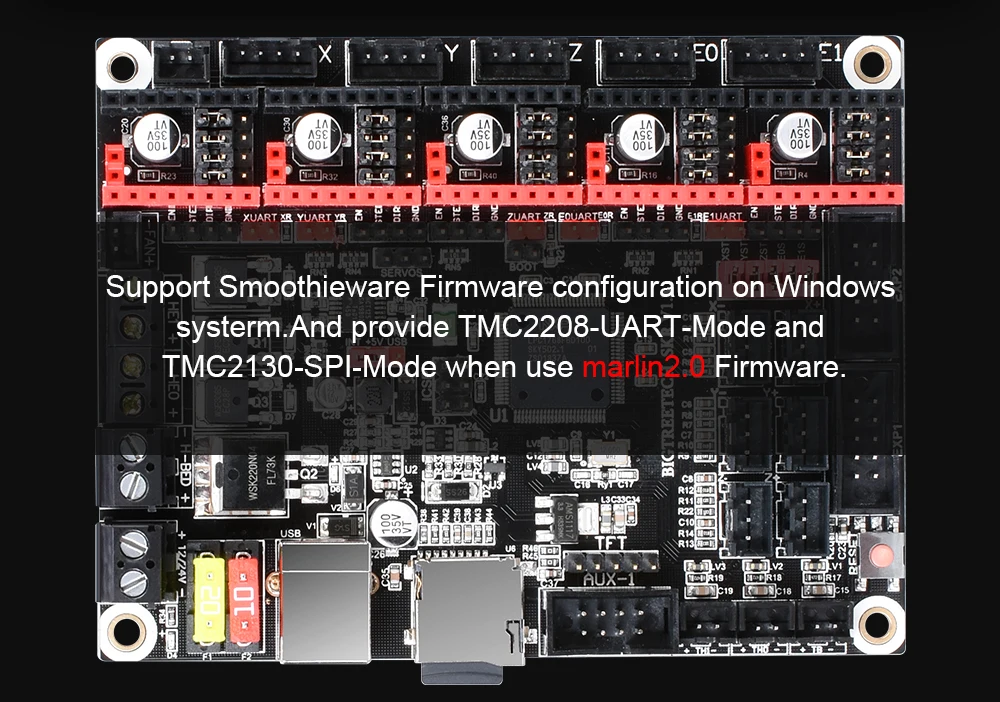

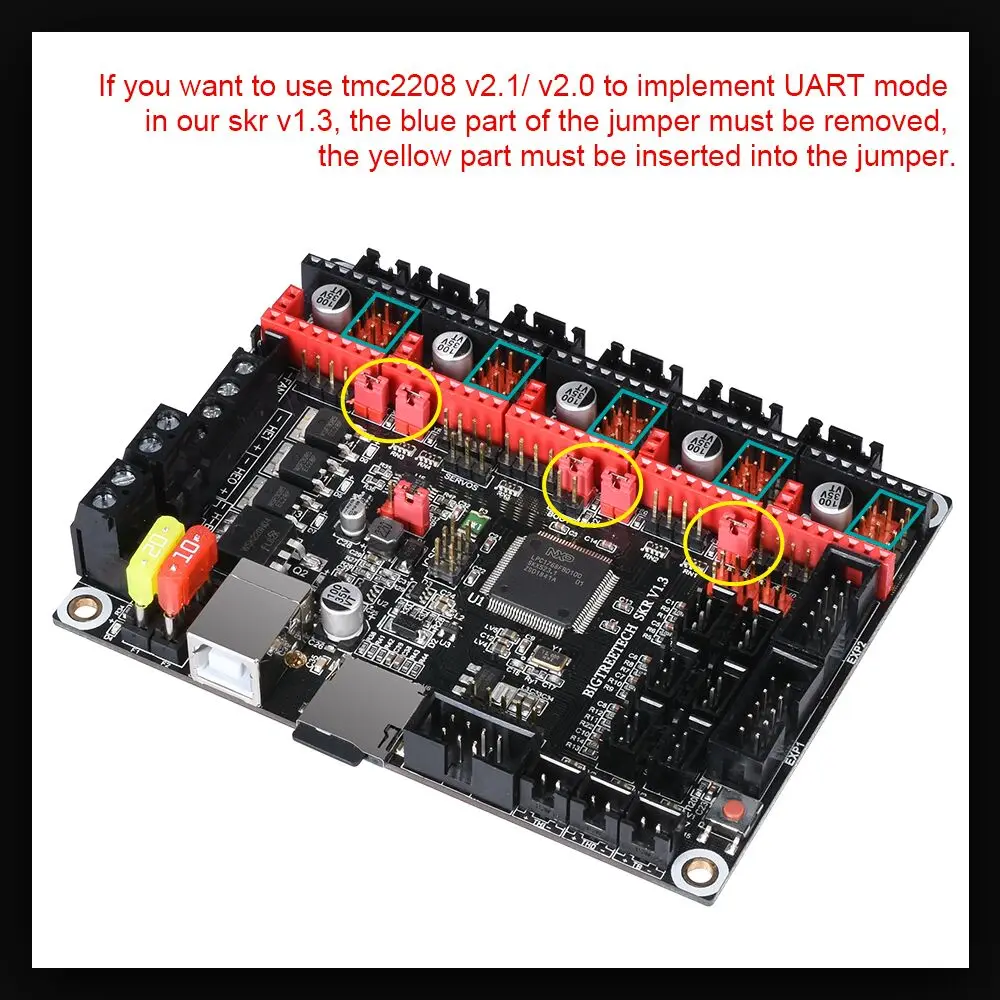

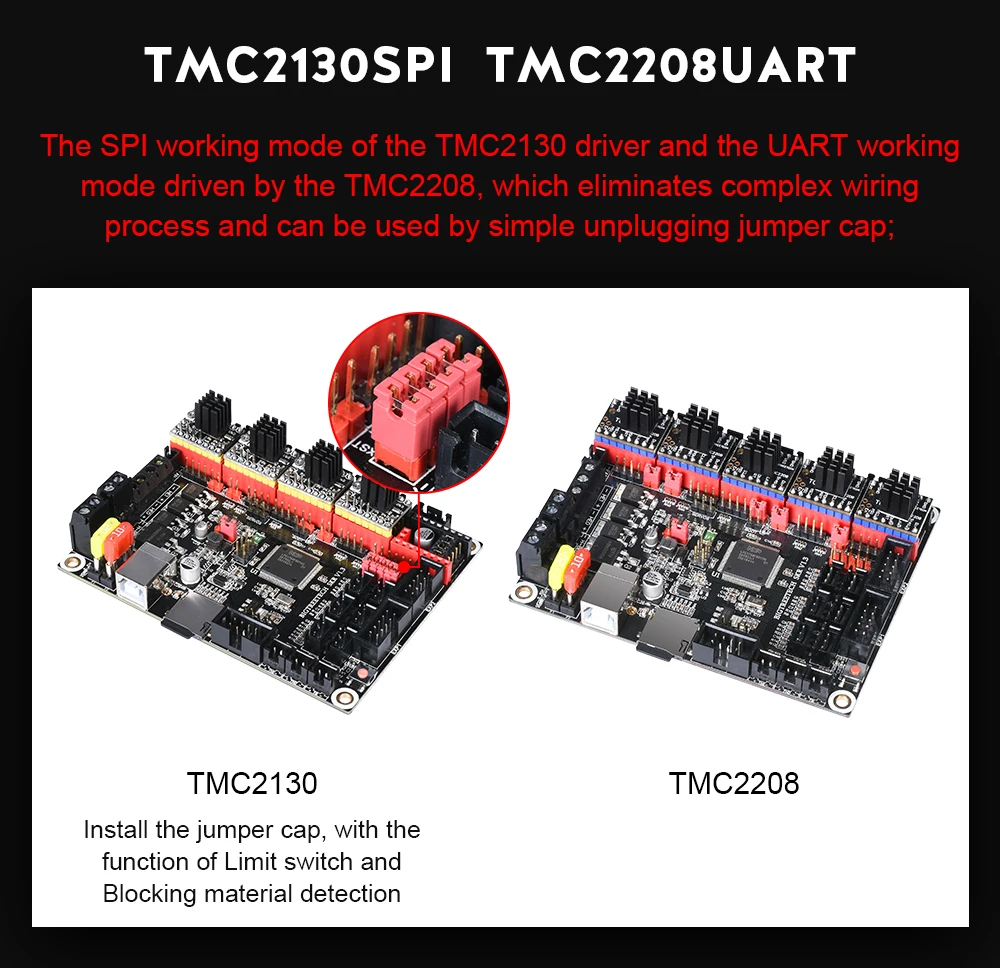

TMC2130SPI, TMC2208UART

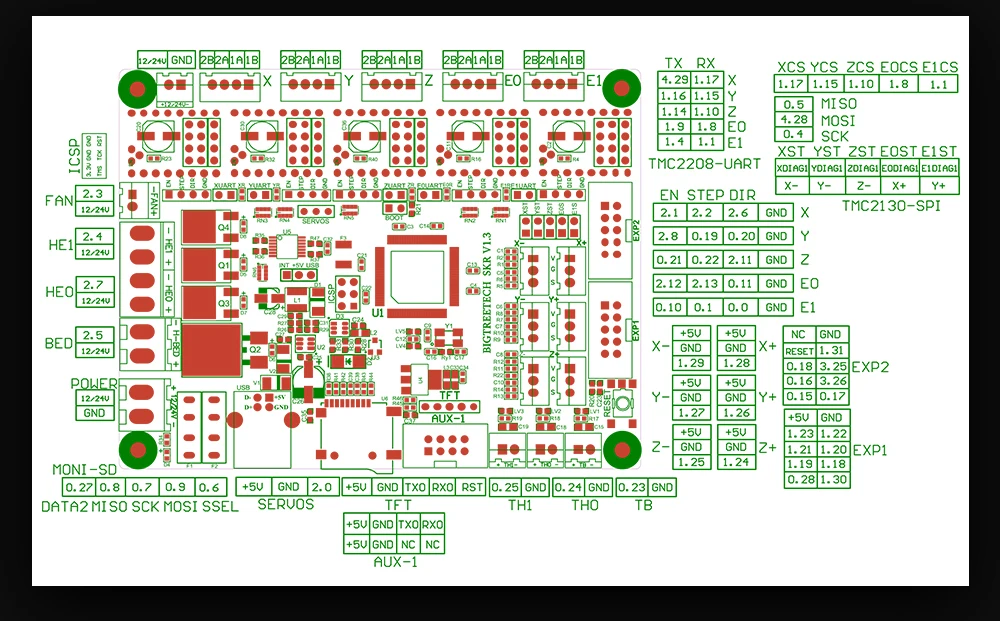

Motor drive interface

X, Y, Z, E0, E1, five (each has a reextendable interface)

Temperature sensor interface

TH0, TH1, TB, 3 channel 100K NTC (thermal resistance)

PC communication interface

square USB, easy to plug, communication baud rate of 115200

Support file format

g-code

Supported machine architecture

XYZ, Delta, Kossel, Ultimaker, Corexy

Usage

3D Printer Board

TMC2208 Version

V3.0

TMC2130 Version

V3.0

Master Chip

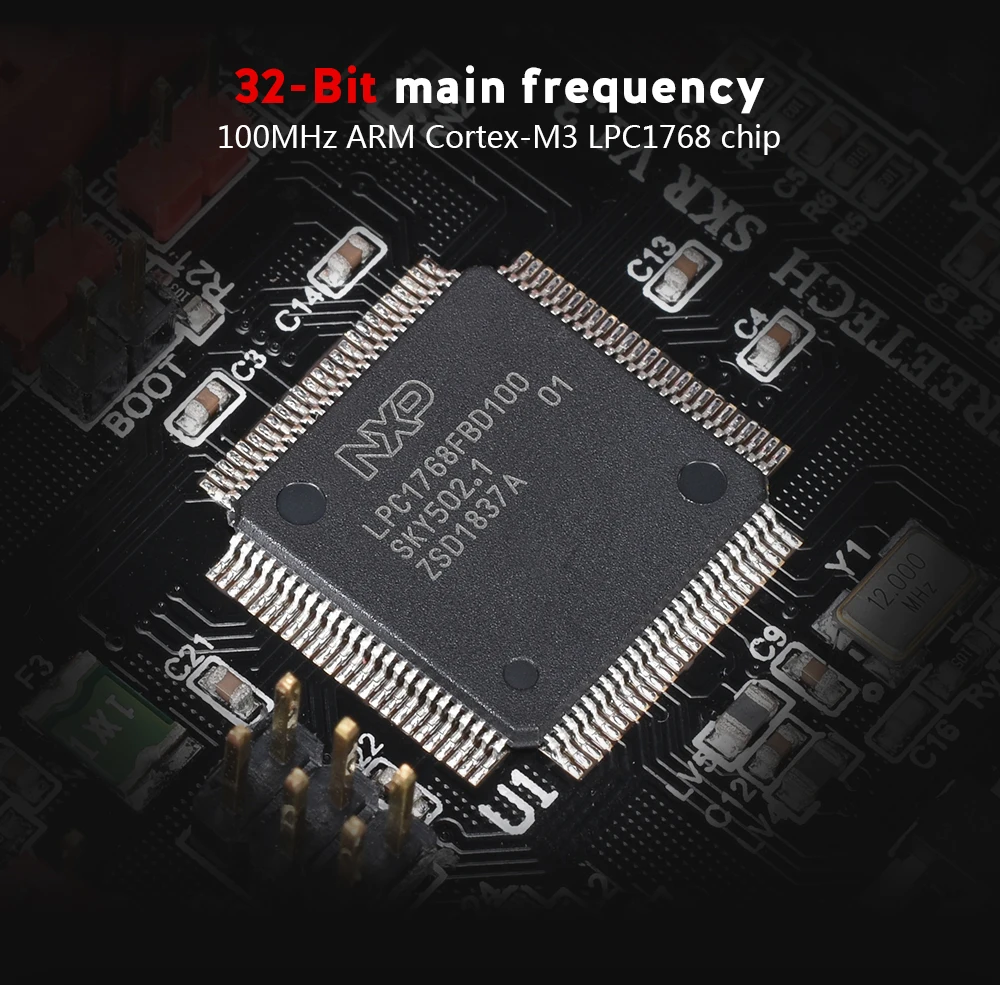

LPC1768 & 32 Bit

Support Auto Bed Leveling Sensor

BLTouch Sensor

Board can replace

MKS GEN V1.4/MKS GEN L/Ramps 1.4/Ramps 1.5/1.6
