MKS Gen L V1.0 Integrated control PCB Board Reprap Ramps 1.4 support A4988/DRV8825/TMC2208/TMC2130 Driver For 3D Printer parts


SKU: 32890185949 Categories: ,


USD 26.27/pieceUSD 16.21-39.10/pieceUSD 18.19-43.76/pieceUSD 39.80/pieceUSD 20.23-46.37/pieceUSD 16.32-44.01/pieceUSD 9.02-34.02/pieceUSD 31.59-49.11/piece

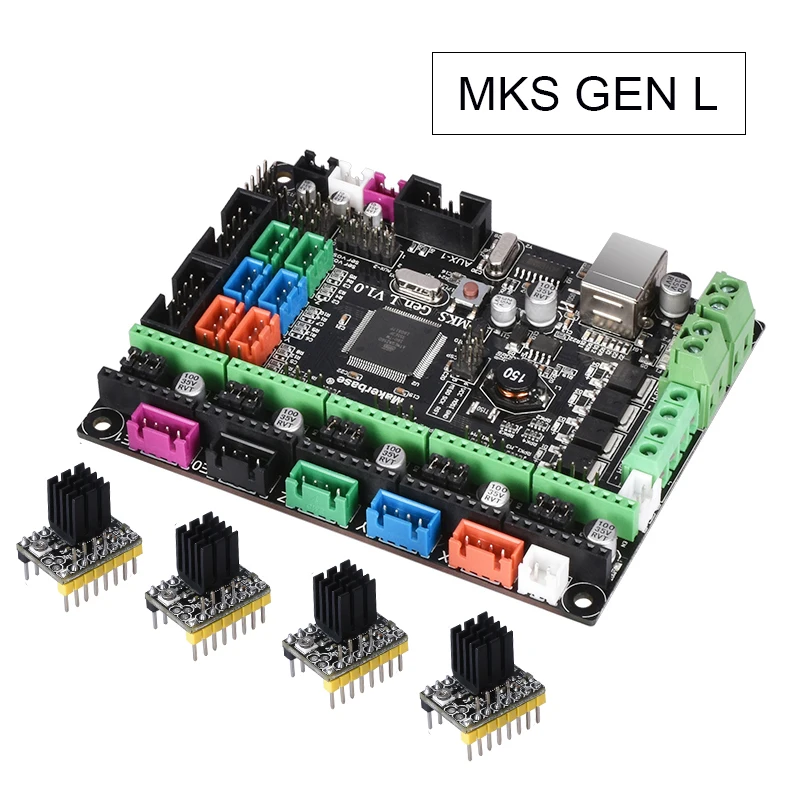

Aiming at the problems exist on the open sourced controller board such as Ramps 1.4, the developers in Makerbase specially optimize and develop a new product, MKS Gen_L, which provides more flexible choices for users.


  • Support a variety of stepper drivers such as A4988, DRV8825, TMC2130 and LV8729, available to change the stepper drivers and motors as users like.

  • Reserve external driver signal, available to connect external high-current driver to drive the 57 and 86 stepper motors.

  • Use high-quality MOSFET, better cooling and more stable.

  • 2560 and Ramps 1.4 are integrated in the board, which avoids the complicated connectors.

  • Use specific power chip, support 12V-24V power input, and resolve the problems of chip heating and power shortage.

  • Stable and reliable filter circuit greatly reduces interference and avoids crashes as possible in the process of printing.

  • Use CH340 serial port chip, more easily install the drive than 16U2.

  • Run Marlin firmware, the configuration is completely same as Ramps 1.4, and available to directly replace the Ramps 1.4.

  • Support Ramps 1.4, 2004LCD,12864LCD, TFT28 and TFT32.

  • Available to input 24V, the heated bed current can be reduced to 1/4 at the same system power which effectively resolves the problem that the MOSFET of heated bed heats.

  • X axis, Y axis and Z axis with different color terminal controls the stepper motors and endstops, which is convenient to wire.

  • Plug the stepper drivers according to the different color terminals which decreases the probability of reverse and prevents the controller board damage.

Acquire the firmware and drive .Land the website to download:

Type 1 :

Only the board

Type 2 :

Board with 4pcs A4988/DRV8825/TMC2208/TMC2100/TMC2130 DIY Driver (This DIY TMC2130 is not solder resistance and no wire)

Type 3 :

Board with 1 Set TMC2130 SPI mode (This SPI TMC2130 is solder resistance and has wire)

PIN port map

Installation Dimensional Drawing

System connection diagram

With TMC2130 V1.1

With TMC2208 V2.1
