Anet 3D printer main control board Update motherboard V1.5 RepRap Ramps1.4 compatible for Anet E12 Auto/Normal A8 A6 3d printer

Original price was: $33.75.Current price is: $27.00.

SKU: 32848356175 Categories: ,

Description

Features:

  1. Highly integrated one board, solve the Ramps1.4 combination interface cumbersome, prone to failure.
  2. the layout of the optimized layout and thermal design, the whole board performance more stable.
  3. Support automatic leveling proximity probe, customers can add their own debugging automatic leveling.
  4. large USB, more stable connection, the interface is more concise, more convenient wiring, work more stable, longer life expectancy.

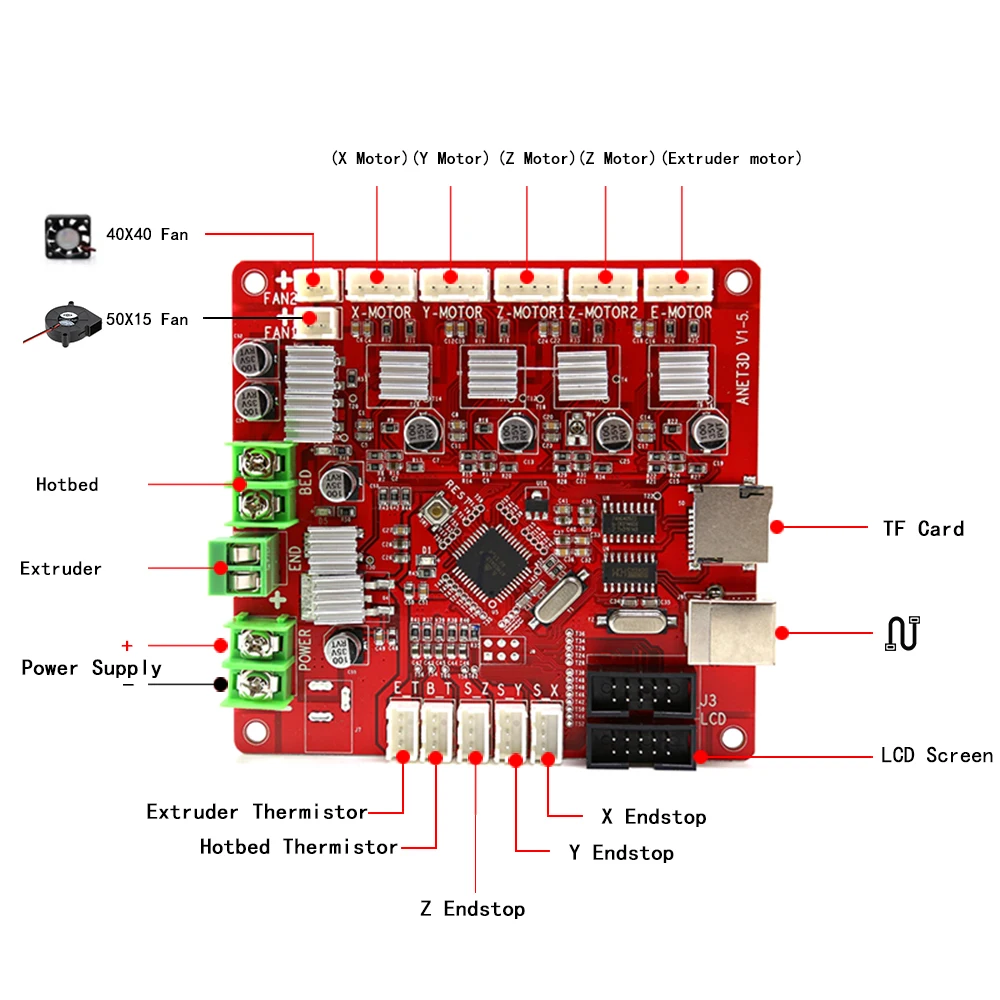

  5. using onboard 4 A4988 16 subdivision stepper drive motor (Z axis two motor interface).
  6. PWM DC 3 outputs (1 high current, 3 current, 2 small current).
  7. using high-performance low-resistance Mos tube drive, cooling better.
  8. using ST original power chip, support 12V-24V power input, solve the Ramps voltage conversion chip fever problem.
  9. can accept 24V input, the same system power can reduce the hot bed current to 1/4, effectively solve the hot bed MOS tube heating problems.
  10. you can use the open source firmware Marlin, configuration and Ramps1.4 exactly the same, you can directly replace Ramps1.4.
  11. can be directly connected Ramps1.4, 2004LCD control board and 12864LCD control board (no L-type adapter board, has been integrated)

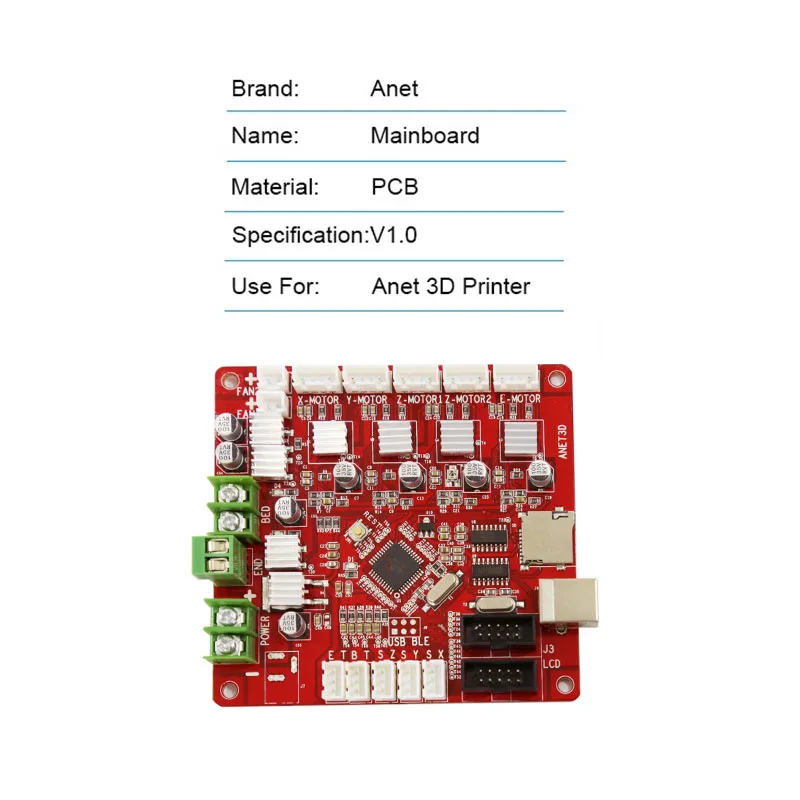

​Specifications:

  • Brand: Anet
  • Suitable for: Anet 3D Printer board
  • Voltage Input: 12V

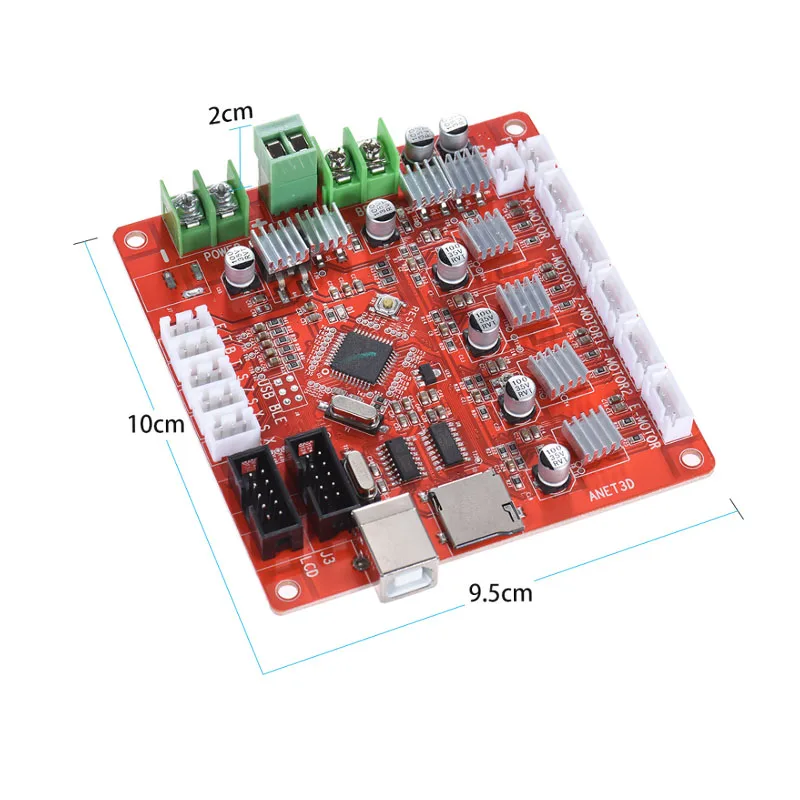

  • Mainboard Size: 10 * 9.5 * 2cm / 3.9 * 3.7 * 0.8in
  • Mainboard Weight(about): 120g
  • Package Size: 12 * 11 * 3cm / 4.7 * 4.3 * 1.2in

Package:

  • 1*mainboard

​

Additional information

Weight 0.5 kg
Dimensions 20 × 10 × 10 cm
Item Type

Motherboard

Model Number

anet 3d printer board

Brand Name

Anet

1

for a8 mainboard

2

for auto a8 mainboard

3

for auto a6 mainbaord

4

for a6 mainboard

5

for a3 mainboard

6

for a2 mainboard

7

Anet 3d printer
