BIQU Bigtreetech MKS Gen V1.4 Control Board kit with 12864 LCD display TMC2130 TMC2208 A4988 DRV8825 stepper motor drive

$20.86

SKU: 32917488257 Category:

Description

MKS GEN V1.4

Features Benefits:

1, Mega 2560 and ramps1.4 set on a board, to solve complicated Ramps1.4 combination of interfaces, the problem of failure prone. 2, replace the motor drive, drive and support 4988 8825 drive. 3, the circuit board with high-quality 4-layer, heat and made a special optimization; ramps are 2 shelves. 4, using high-quality MOSFET, and better heat dissipation. 5, using a dedicated power chip, support 12V-24V power input, the voltage converter chip to solve the heat problem Ramps. 6, can accept 24V input power under the same system can be hot-bed current is reduced to 1/4, an effective solution to the hot bed MOS pipe heat problems. 7, the firmware can use open source firmware Marlin, ramps1.4 identical configuration and can directly replace Ramps1.4. 8, can be connected to the control panel and 12864LCD Ramps1.4,2004LCD control panel.(Can’t be sure to match all of stype of 12864LCD and 2004LCD ) 9, reserved for motor pulse and direction output ports for easy plug-in high-current To add a large current (eg 2A, 5A) motor drive circuit. 10, reserved Ramps1.4 on Servos, AUX-1, AUX-2 interface that provides three 5V output, three 12V outputs. TMC2130V1.1 SPI

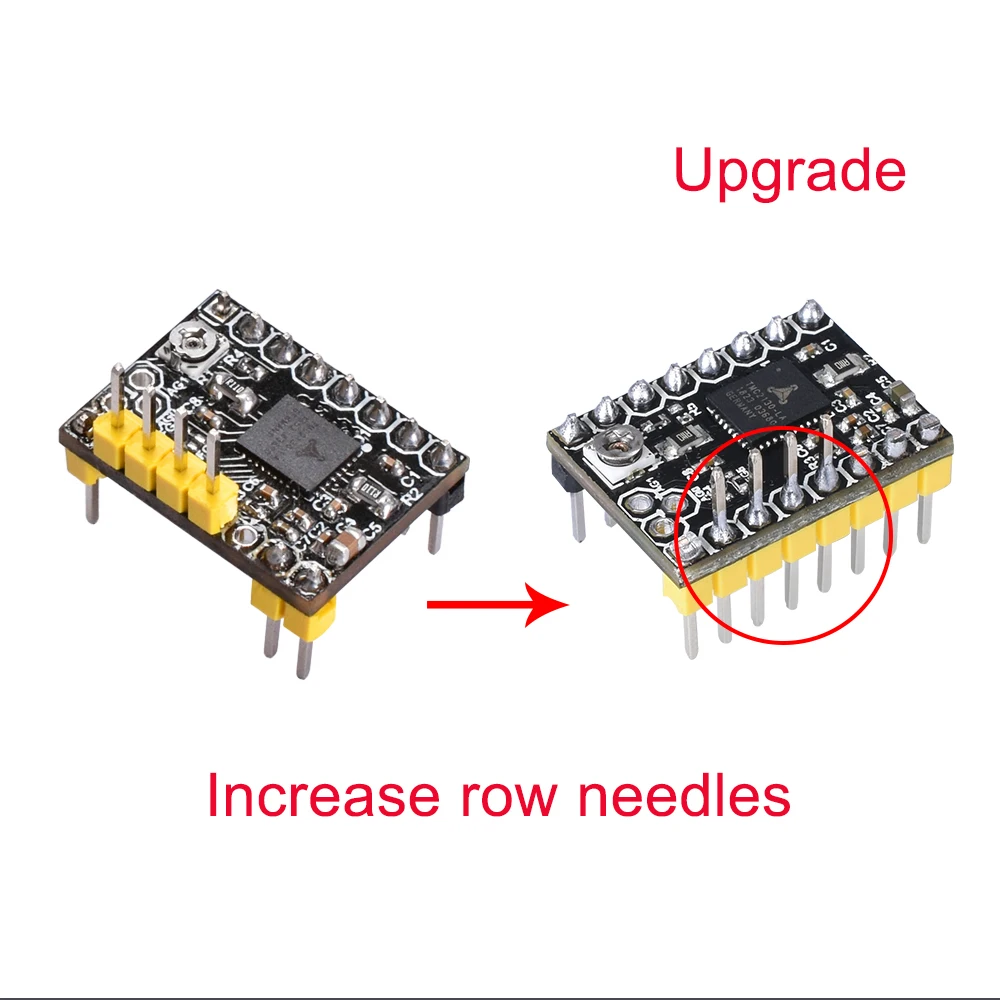

TMC2130-V1.1 is a new module that is optimized and upgraded to solve the problem that older drivers cannot choose to use the SPI working mode.SPI working mode of TMC2130-v1.1 can directly select driver current, driver subdivision and other parameters through firmware, which makes these parameters more accurate.Using sequexternal sequencers, it can greatly reduce the workload of the chip and effectively avoid problems such as running deviation, losting step and fault caused by the overload of the chip.

This module is similar to TMC2100, which will generate a lot of heat energy when it working. Therefore, heat sink and heat dissipation fan must be added to cool it down during the use, which reduce the occurrence of losting steps and running deviation)

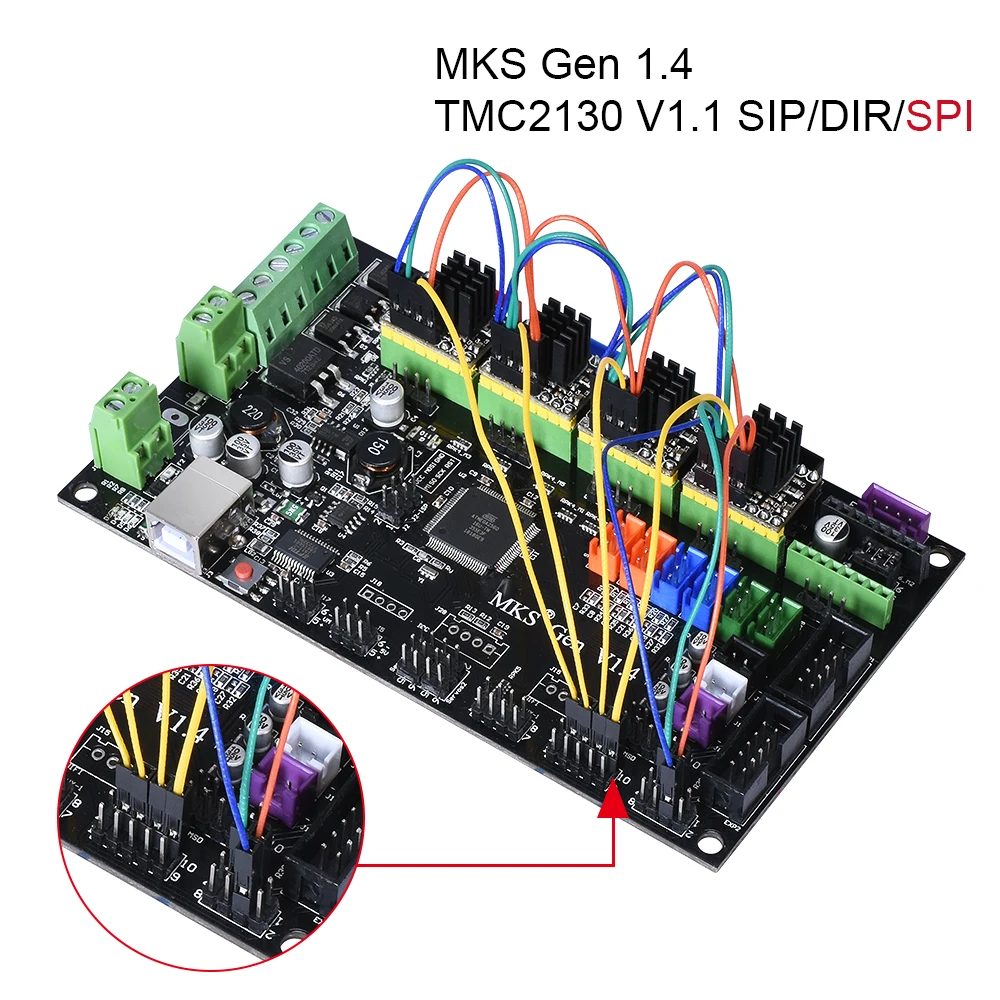

This driver can support STP/DIR/ SPI model , we will explain more details below .

TMC 2130V1.1 manual can downloda:

Features:

  • Supports three control modes of STEP/DIR/SPI interface.
  • Combined maximum efficiency and optimum motor torque operation without noise.
  • High accuracy no sensor motor load detection
  • High load driver will not lost step

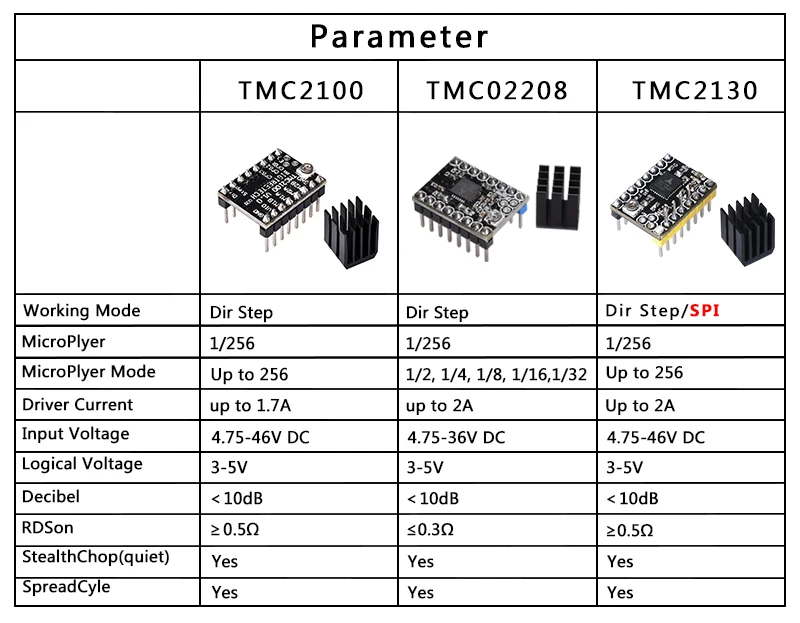

Parameter:

Configuration: CFG/SPI

microsteps: Up to 1/256

microPlyer: 1/256

Logic Voltage VI0: 3-5V

Motor Voltage : 5.5-46V

Motor Phase Current: 1.2A RMS, 2.5A Peak

12864LCD display

Features: 100% Brand new and high quality Using a large screen 12864LCD(3.2′), it can support 8 GB Integrated SD card back after slicing the file into the SD card on the LCD to select the corresponding file can be printed Product comes encoder parameter adjustment can be achieved, and the file selection print Ramps plug and play on, but the need to modify the firmware to support

Type 1:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs A4988(green)

Type 2:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs DRV8825

Type 3: 1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs TMC2208

Type 4:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs TMC2100

Type 5:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+4pcs TMC2130 SPI

with wire

Type 6:1pc MKS Gen V1.4 only

Type 1:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs A4988(green)

Type 2:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs DRV8825

Type 3: 1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs TMC2208

Type 4:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+5pcs TMC2100

Type 5:1pc MKS Gen V1.4+1pc USB Cable+1pc 12864 LCD+4pcswith TMC2130 SPI *4pcs

with wire

About the TMC2130 driver kits , we will arrange to send the new update type .

Type 6:1pc MKS Gen V1.4 only

\

Additional information

Weight 0.45 kg
Dimensions 10 × 10 × 10 cm
Brand Name

BIQU

Item Type

Motherboard

Product name

MKS GEN V1.4 main board kite

Size

14.5*8.5cm

Support Driver

A4988/DRV8825/TMC2100/TMC2208/TMC2130

Support LCD

12864/2004/TFT LCD

Power Input

12V – 24V

Material

PCB

Type

3d printer controller board

Model number

MKS GEN V1.4
