Sale!

ANYCUBIC Mega Pro Laser Engraving 3D Printer Printing 3d Printers With TMC2208 3D Laser Printer Upgrade Version of Mega S

$558.00 $279.00

SKU: 1005001367404401 Category:

Description

ANYCUBIC Mega Pro

* Versatile 2-in-1 3D Printer.

* High-precision printing delivers excellent print quality.

Technical Specification

3D printing:

Printing Technology: FDM (Fused Deposition Modeling)
Build Volume: 210×210×205 mm³
Layer Resolution: 0.05-0.3 mm
Positioning Accuracy: X/Y- 0.0125mm;Z- 0.002mm
Extruder Quantity: Single
Nozzle Diameter: 0.4 mm
Print Speed: 20~100mm/s (suggested 60mm/s)
Travel Speed: 100mm/s
Supported Materials: PLA, TPU, etc
Ambient Operating Temperature: 8°C – 40°C
Operational Extruder Temperature: max 260°C

Laser engraving:

Image format: bmp
Engraving size: 220×140 mm²
Engraving mode: bitmap
Pixel size: 0.05-0.4mm (suggested 0.1mm)
Recommended laser intensity: Brown paper – 15%;Wood – 25%
Laser height: 1-100mm(suggested 50mm)
Mirror image: the default value is recommended
Rated power: 1500mw
Supported Materials: Leather, Paper, Wood, etc

Software:

Slicer Software: Cura
Software Input Formats: .STL, .OBJ,.DAE, .AMF
Software Output Formats: GCode
Connectivity: SD Card; USB cable(expert users only)

Electrical:

Input rating: 110V-220V AC, 50/60Hz

Physical Dimensions:

Printer Dimensions: 405X410X453mm³
Weight: ~15kg

1.Multi-function 3D Printer

* 2 in 1 machine of 3d printing and laser engraving.

* Multiple functions to unleash your creative potential.

2. Laser Engraving

* High-precision laser engraver inspires you to create in more ways
( It is capable of engraving on wood, paper, leather,etc )

*Decoration
*Personalized custom
*Art design

3.TMC2208 Quiet Drive

Silence the 3D printer. Significantly reduce the noise when printing.

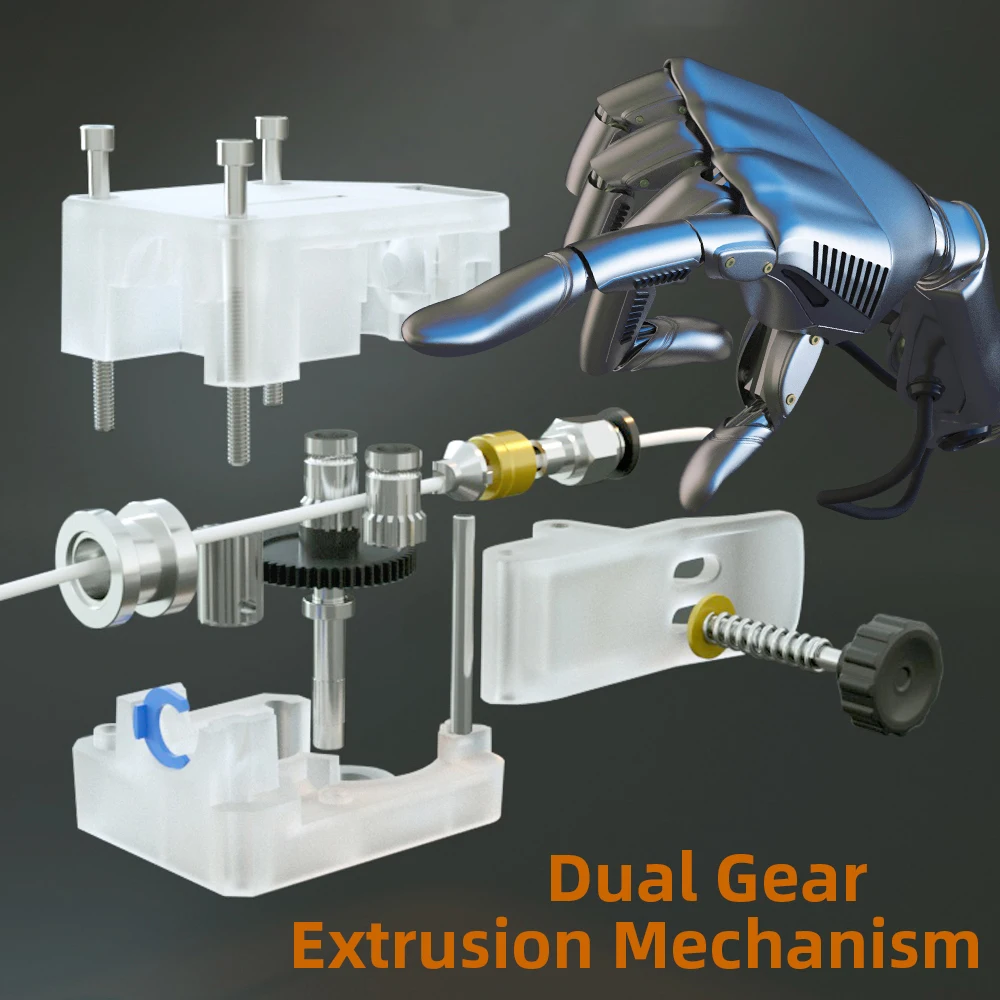

4. Double Gear Extrusion Mechanism

* Optimized extrusion torque and path orientation.
* Compatible with flexible filaments like TPU.
* Stronger torque
* Route optimization
* TPU filament

5. Pause At Desired Height

* Offer the option to pause at a specific layer, print with different colors on a single nozzle

* Previous multi – color printing: cumbersome operation, low efficiency and poor effect

* Multi – color printing with smart Pause: simple operation, high efficiency and great effect

*Pause up to 6 times

6. High Quality Power Supply For Superior Safety Performance

1.Obtain multiple certifications including UL certification, CE marking, and FCC certification.

2.Support 110-220v wide voltage, applicable to most parts of the world, no need for shift between 110v and 220v

7. Full Rigid Solid Metal Frame & Modular Design

Sturdy construction enhances the stability when printing which leads to the highly detailed prints. With modular design, It can be assembled in just a few minutes.

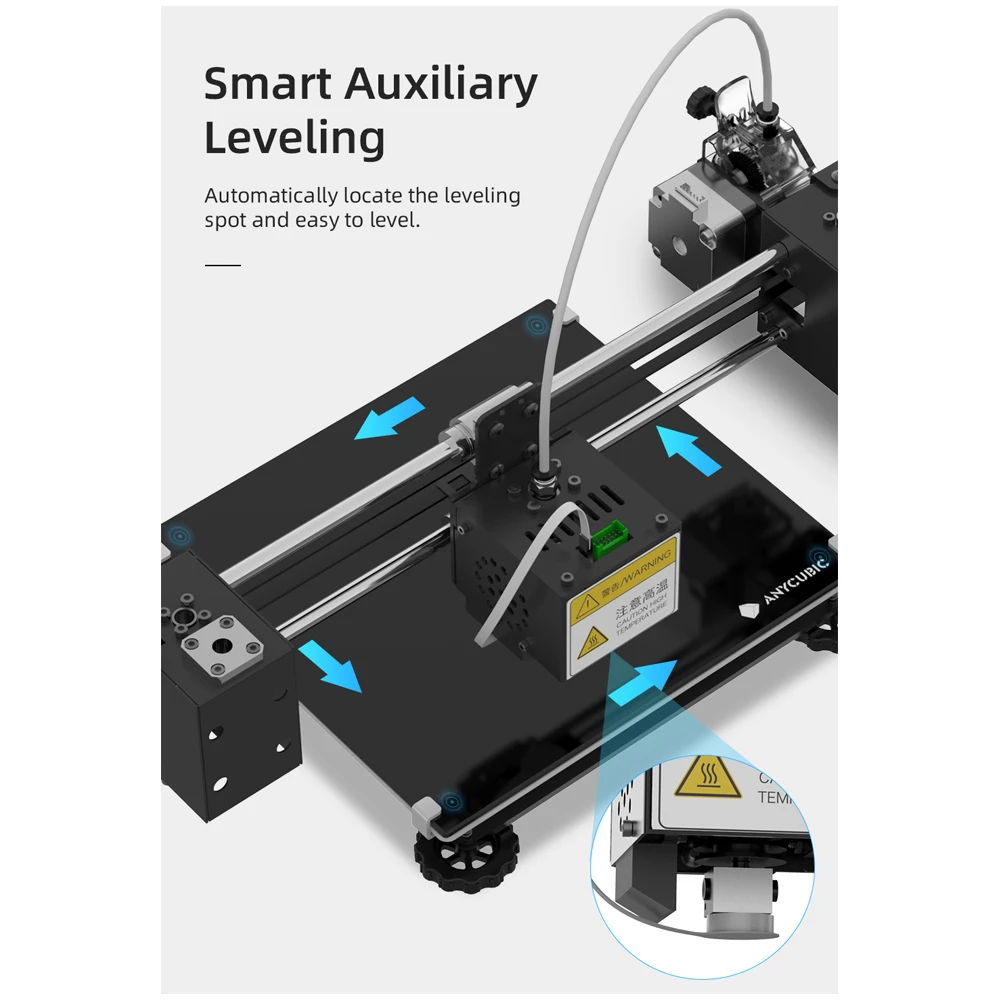

8. Smart Auxiliary Leveling

Quickly locate the corners of the print platform during leveling.

9. Upgraded Bed Leveling Knobs

Big leveling knobs with ergonomic design make for a easier manual leveling.
( Large diameter, labor-saving, anti-skid )

* 60% less effort than the smaller one
* The diameter is 2 times larger than the previous version

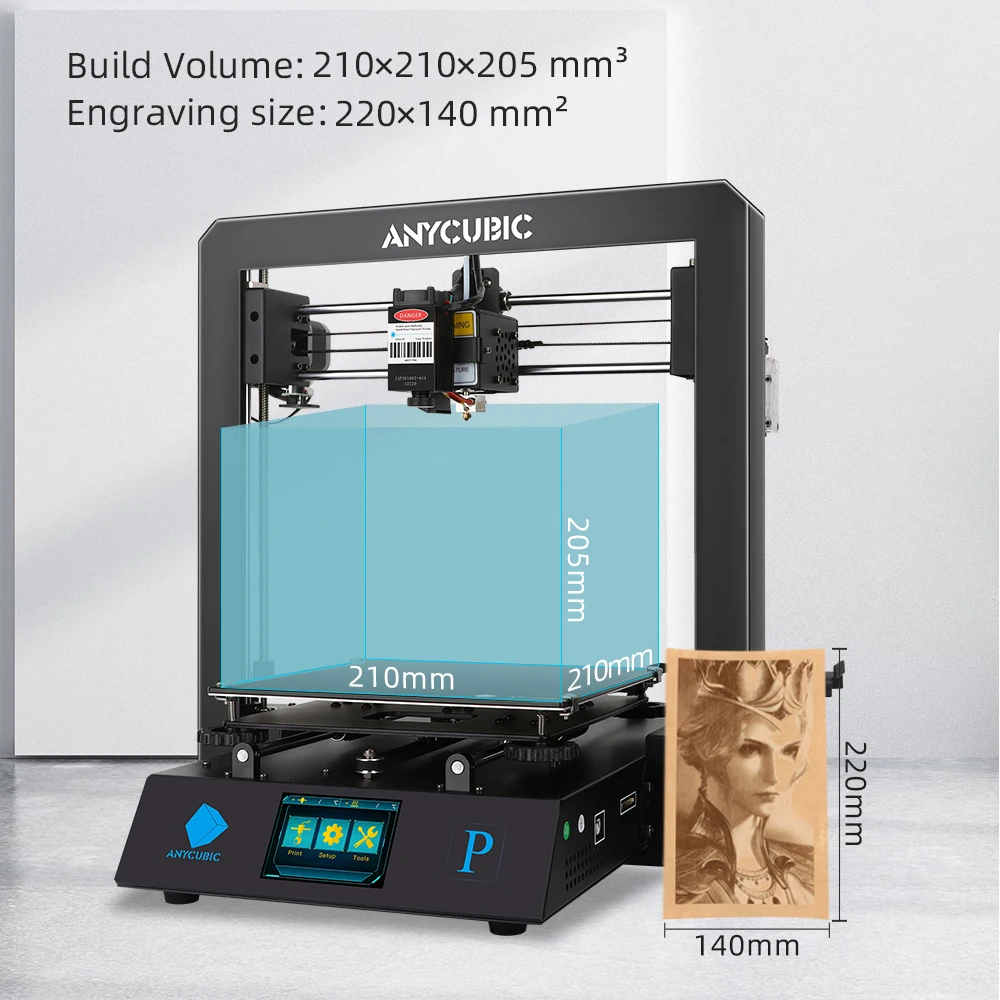

10. Big Build Volume For Limitless Creativity

The print size is large in both print modes.
* Build volume:210×210×205 mm³
* Engraving size:220×140 mm²

11. Auto-resume From Power Loss

Easily continue printing from power failure or pause, saves time and filament.
*Power loss
*Continue printing

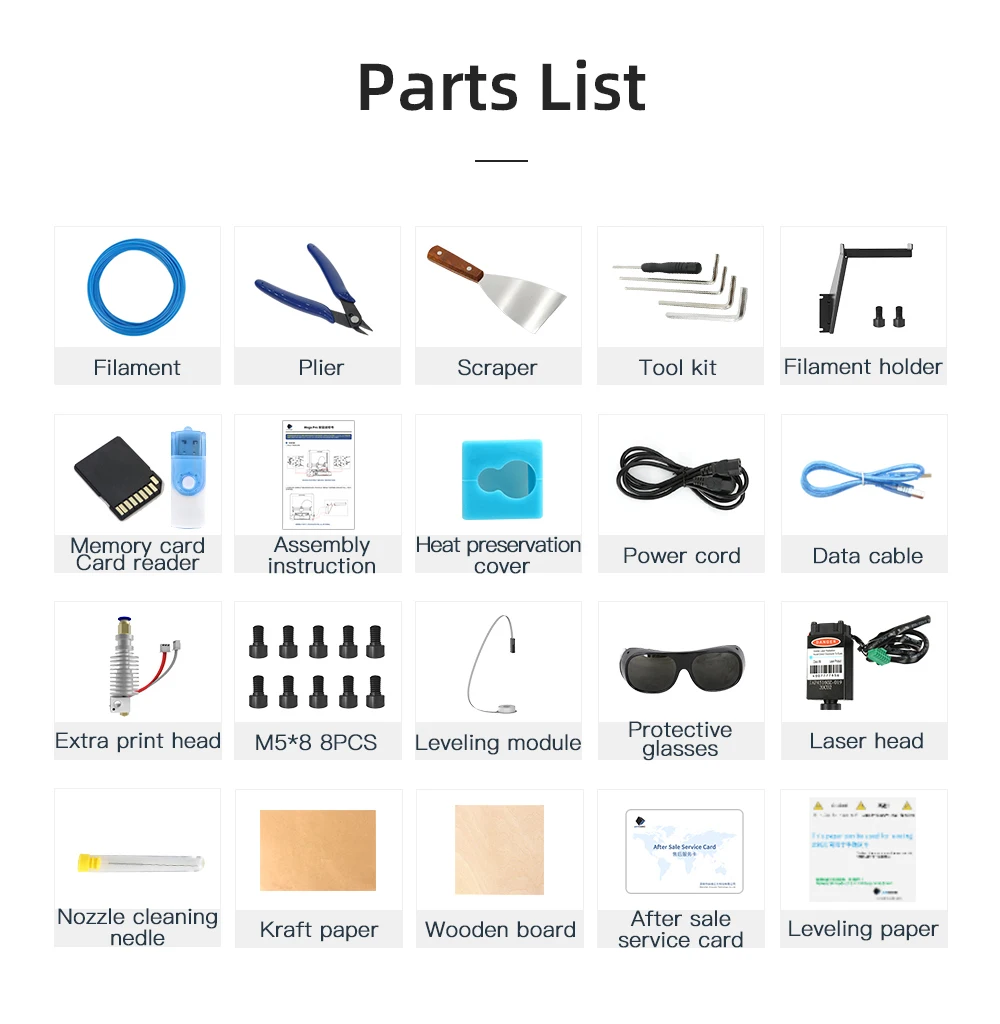

12. Package List

Additional information

Brand Name

ANYCUBIC

Model Number

Mega Pro

CE Certification

Yes

Consumables Diameter

1.75mm

Printing Speed

60mm/s

Bed Temp

110℃

Slice Thickness

0.05~0.3mm

Language

English

Maximum Printing Speed

100mm/S

Interface Type

SD

Color Print Speed

20~100mm/s

Fliament

PLA, ABS, TPU (flexible), HIPS, Wood

Slice Software

Crua, Smplify3D, Repetier-Host

Maximum Working Speed

100mm/s

Precision

X/Y 0.0125mm, Z 0.002mm

Voltage

110-220V

Operating System

Mega Pro

File Format

.STL, .OBJ, .DAE, .AMF

Nozzle Diameter

0.4mm

Diameter Temp

260℃

Auto Leveling

No

Maximum Print Size

210*210*205mm

Molding Technology

FDM

3D Printer

Laser Printer
