Sale!

3D Printer Scanner By Sun-Scan

$588.89 $530.00

SKU: 32813191747 Category:

Description

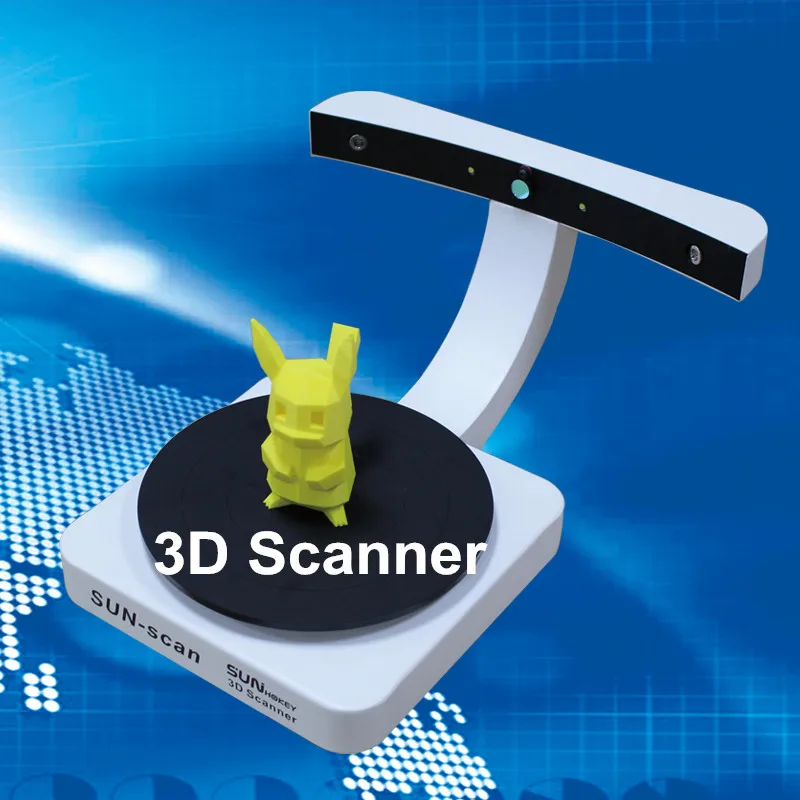

3D Printer Scanner By Sun-Scan

New Arrival 32Bits Dual Laser 3D Scanner Sun-Scan 3D Printer Scan 2MP CMOS Image Sensor USB Interface 3D Scan for 3D Printer

Features:

1) Dual laser scanning to compensate the dead corner;

2) High-density scan, a single laser 800 outline, dual laser 1600 contour;

3) Dual bright LED lighting, textures and more realistic;

4) Multi-angle stitching, make up less than scanning the broken surface;

5) Measurement function, facilitate the analysis of measurement;

Descriptions:

The Sun-scan Desktop 3D Scanner creates a digital 3D model of a physical object by taking a rapid sequence of pictures as the object rotates on the Sun-scan turntable. Here is how it happens:

1. Sun-scan two laser scanner located in the left, right angle to create a laser ray, camera and extract the outline of objects.

2. Sun-scan scanner software receives the laser ray provide photos, these photos will create a combination of a point cloud.

3 . After the scan is complete, a check 3D grid multi-generation Sun-scan scanners, you can modify the 3D modelling software. Specifications: GREAT TO SCAN – Objects that are larger than a 30 x 30 mm cylinder

– Objects that are smaller than a200 x 250 mm cylinder

– Weighing less than 3 kg

– Static object

– Opaque objects

DIFFICULT TO SCAN

– transparent objects

– Shiny or reflective objects

– Very dark objects

– Fuzzy objects

DO NOT SCAN

– Moving Objects

– weighing more than 3 kg

-Objects that are larger than a 200x 250mm cylinder

– Objects that are smaller than a 30 x30 mm cylinder

Tip: glass objects you can use to reduce glare, developer reflective object mesh make the dark mesh become bright, transparent.

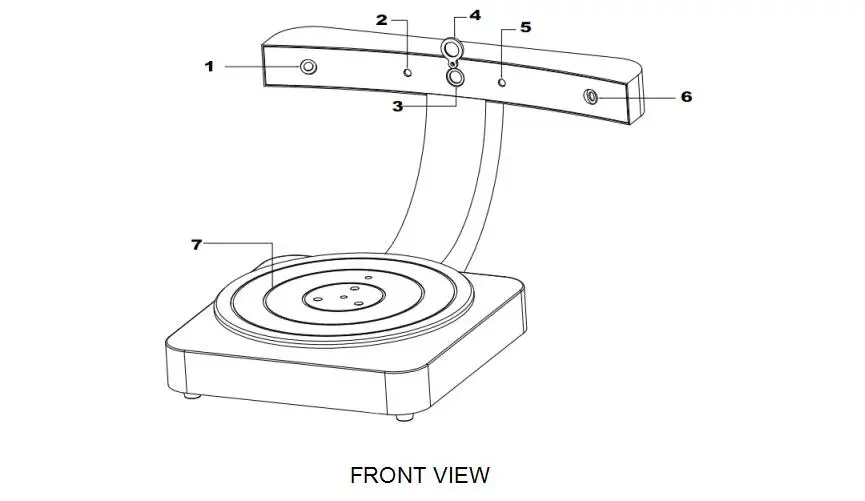

 3D Printer Scanner By Sun-Scan Hardware: 1. Left Laser; 2.Left LED;3. Camera; 4.Camera Filter; 5. Right LED; 6. Right Laser 7.Turntable; 8.Power Switch; 9. Power Input Port; 10.Power Light; 11.USB Port Scanning Example:

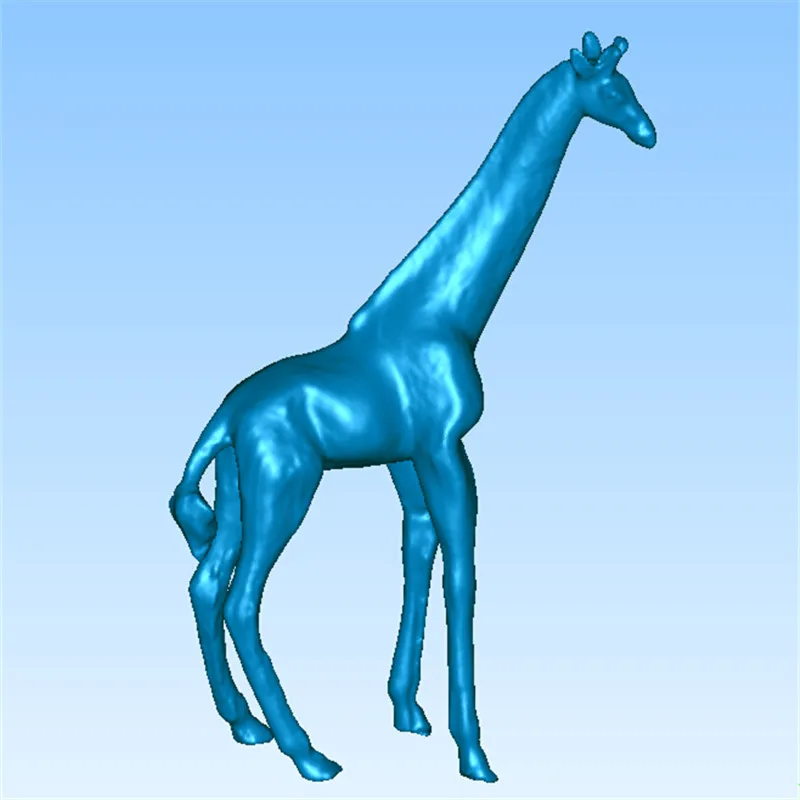

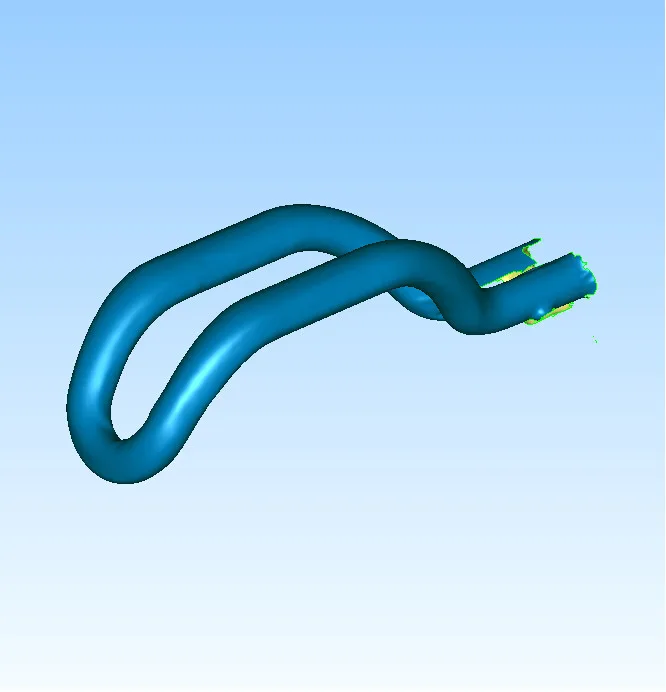

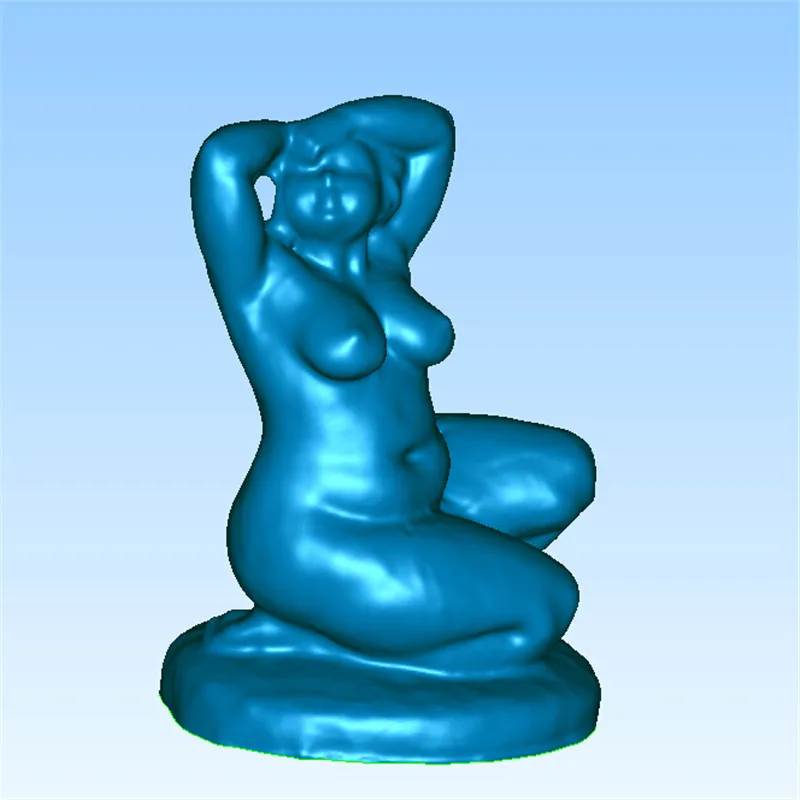

1) Waxwork model:

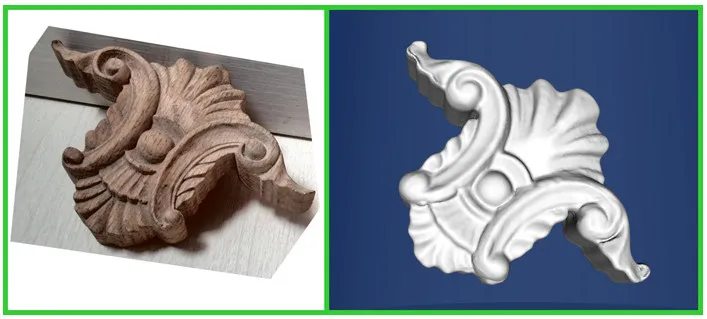

2) Woodcarving scanning:

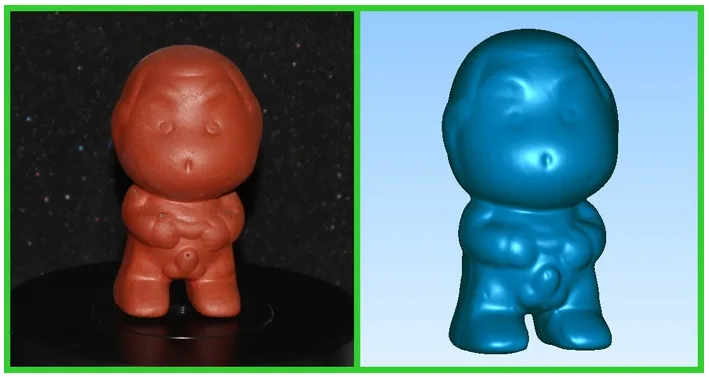

3) Rubber scanning:

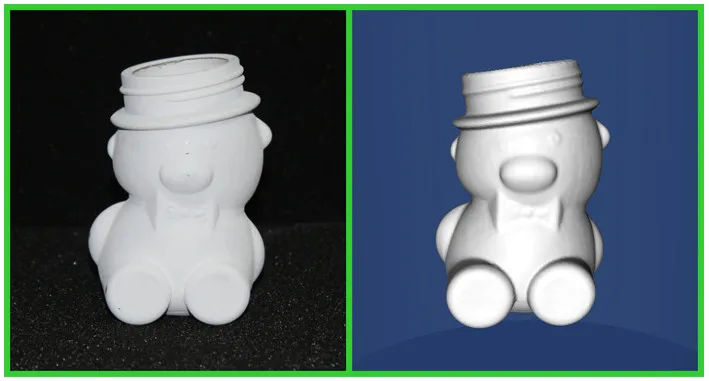

4) Ceramic Scanning:

5) Glass Crafts:

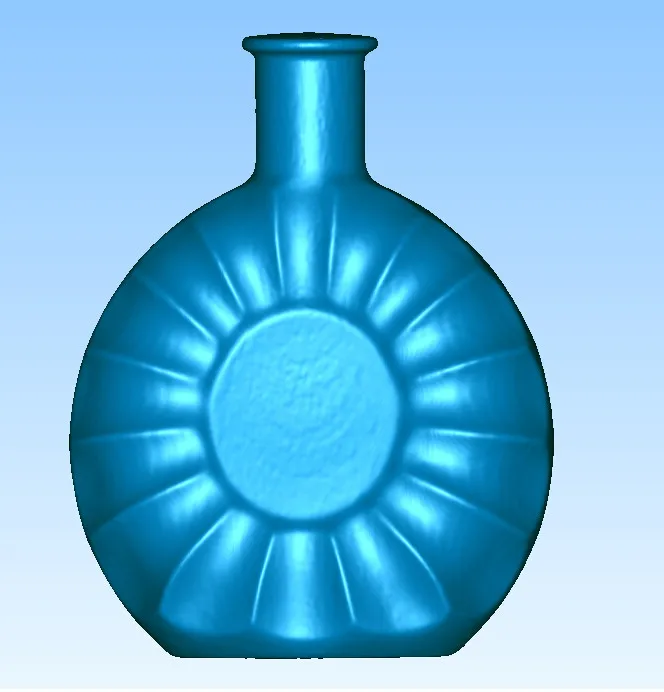

6) Bottles scanning :

Applications:

1) Artwork: 2) Toys: 3) Lighting Design: 4) Glass Products Design 5) Measurement Function: Accessory Checklist: 3D scanners *1 Calibration board *1 USB2.0 cable *1 Power adapter *1 Software CD *1 User manual *1 How the Items Packed:  3D Printer Scanner By Sun-Scan Important information and safety instructions Using a 3D scanner, must comply with the safety precautions, to avoid accidents and damage the equipment: 1. Before the use or operation of this equipment in this manual, please carefully read and understand. 2.Non-personnel repair this equipment and without the training of qualified personnel do not feel free to use this equipment. 3. Maintenance, please turn off the power, to prevent damage to components. 4. Scanners were wet, should immediately turn off the power supply, and other dried completely before they can be used again. 5. The use of equipment should be stable, to prevent from falling. 6. Please do not use this device near the source of electromagnetic interference. 7. Do not touch the camera lens or filter, will affect the scanner accuracy and scanning effect. 8. Do not force into the USB or the power plug.

Additional information

Weight 5 kg
Dimensions 47 × 37 × 27 cm
Model Number

BR-XQ96

Brand Name

Sunhokey

Scan Breadth

200*250mm(D*H)

Product name

Sun-scan

Scan Technology

Laser Line Triangulation

Scan Speed

Single laser:3-4min double laser: 6-7min

Scan Weight

<=3Kg

File Types

STL OBJ PLY WRL

Supports

32/64bit Windows XP Windows 7,Windows10

Power

In AC10-240V 50-60Hz Out DC12V2A

Size

360mm*310mm*180mm (L*W*H)

Scan accuracy

Sun-scan :<=1mm
