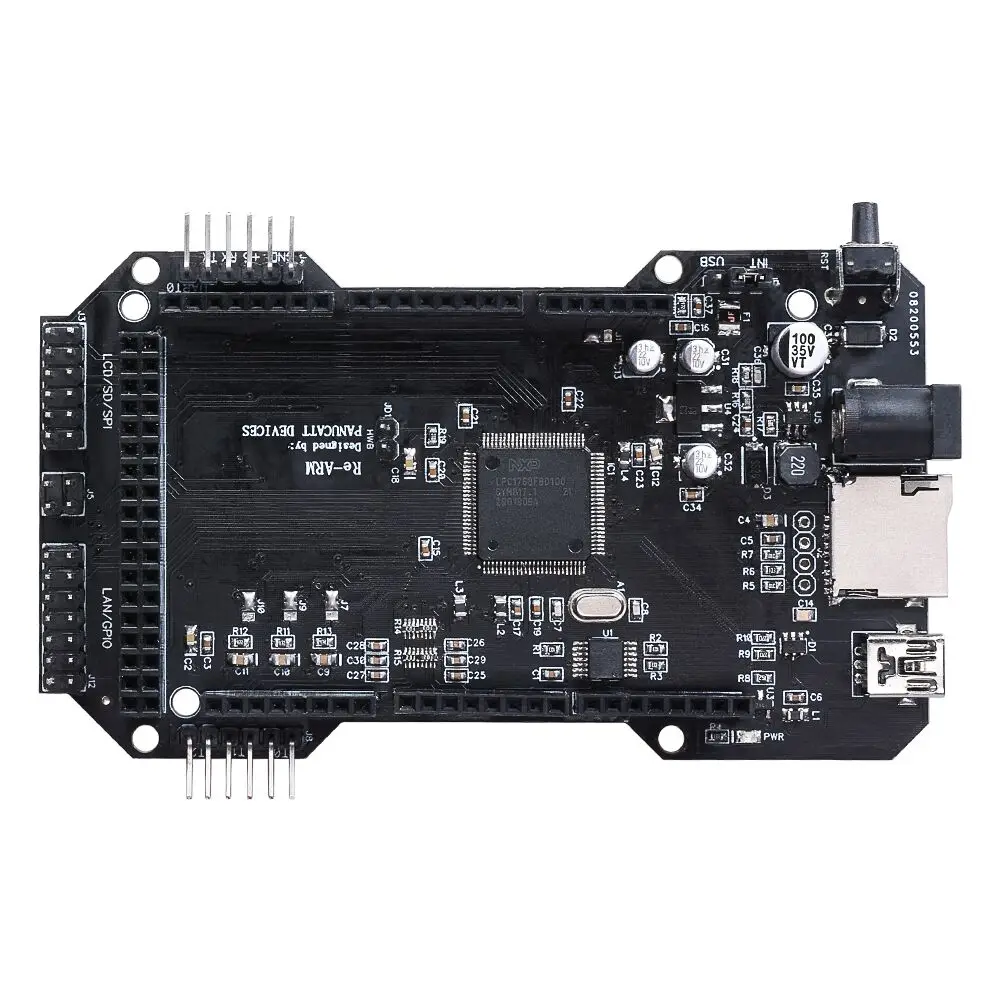

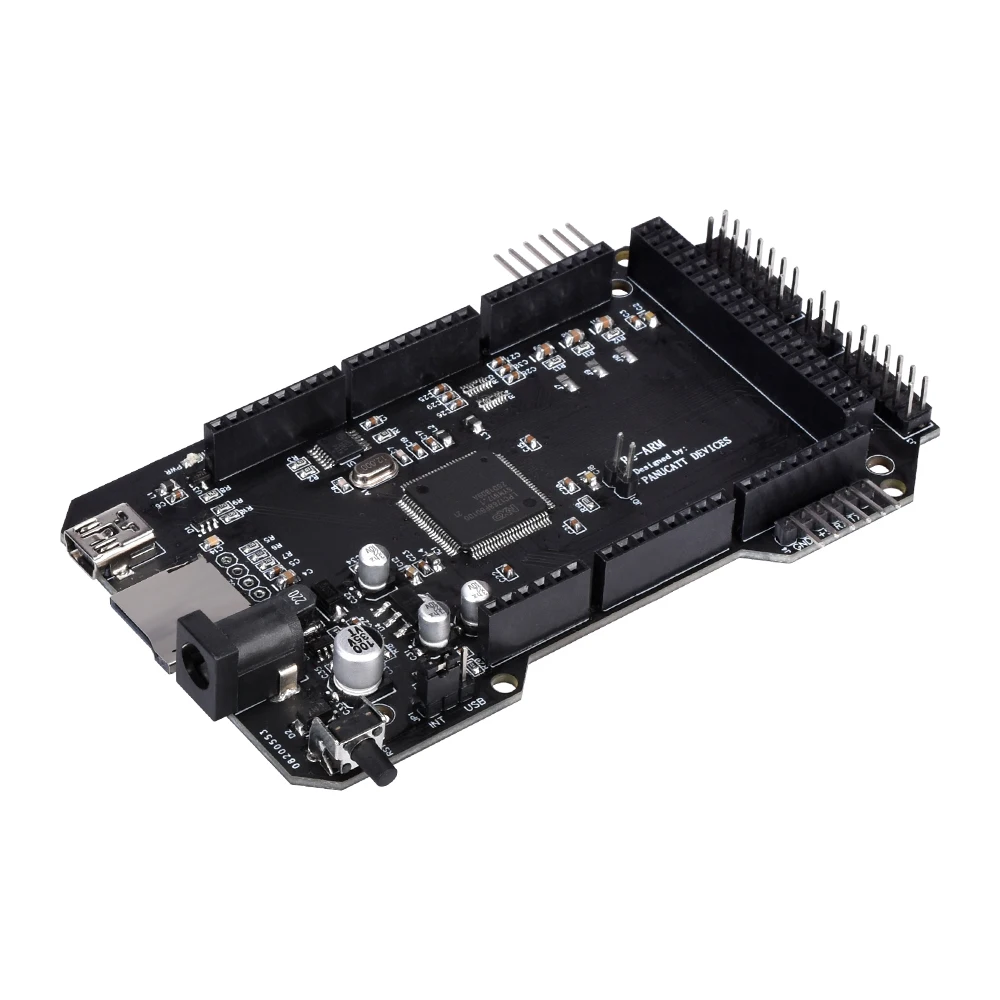

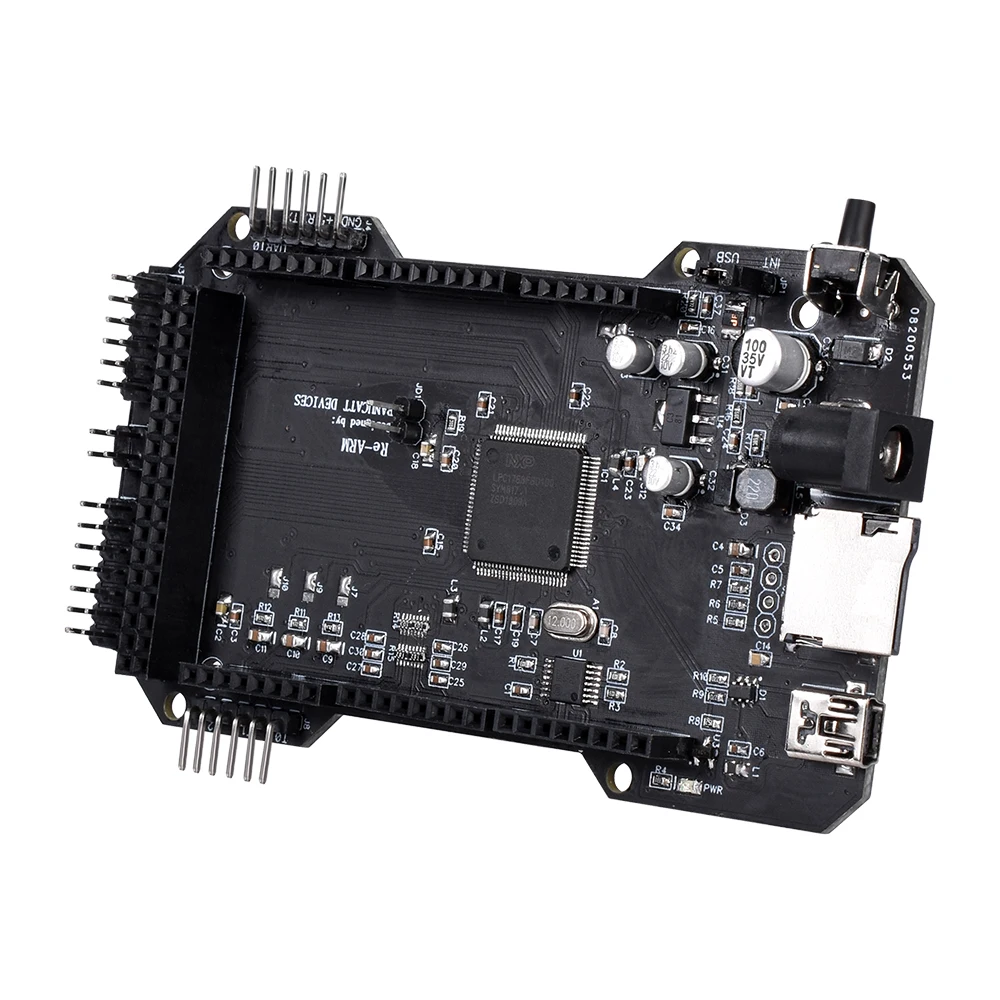

BIQU Clone RE ARM 32Bit Controller Motherboard Update

$25.99

SKU: 32958699930 Category:

Description

Welcome to my store!

Features Benefits:

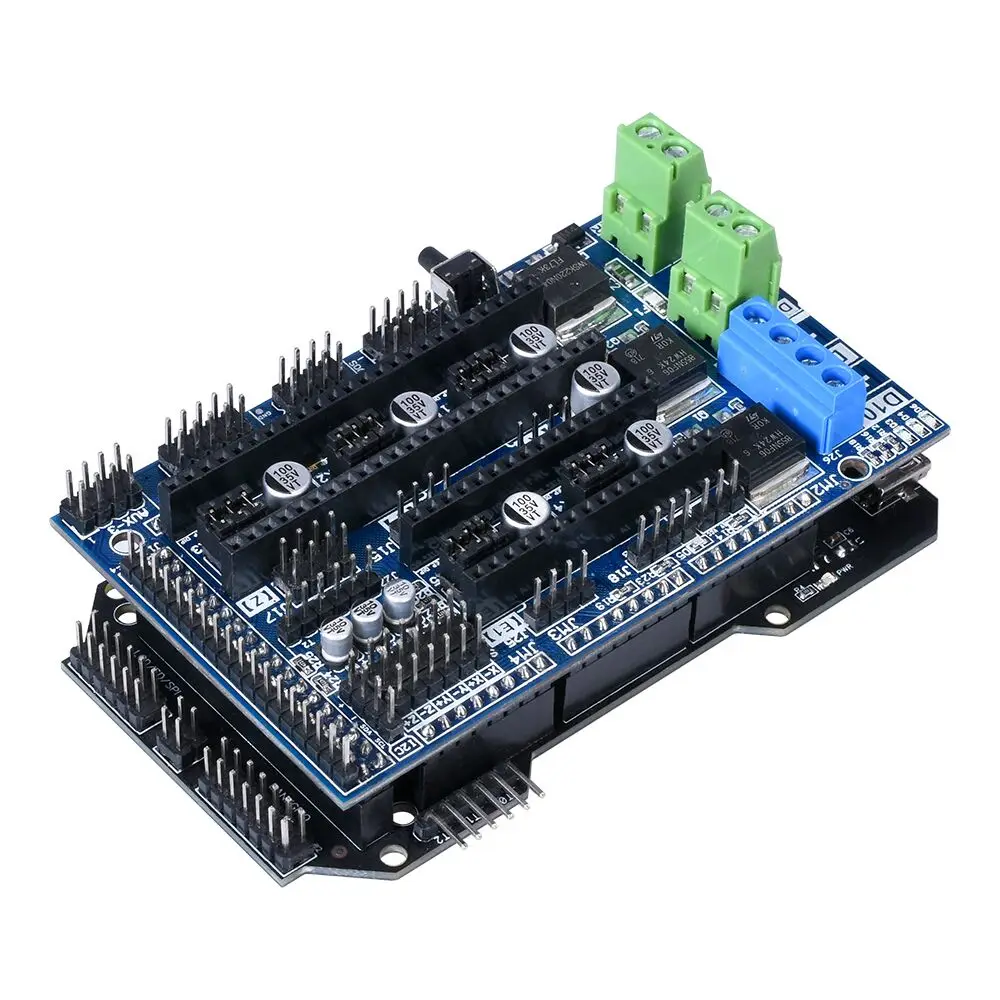

RE-ARM is a 100Mhz, 32-bit ARM controller with the popular Arduino MEGA footprint. It’s a plug-in replacement for the Arduino Mega in your RAMPS setup for a quick and easy upgrade to 32-bit goodness.

It runs the awesome Smoothieware firmware by Arthur Wolf.

Detailed Specification(running Ramps)

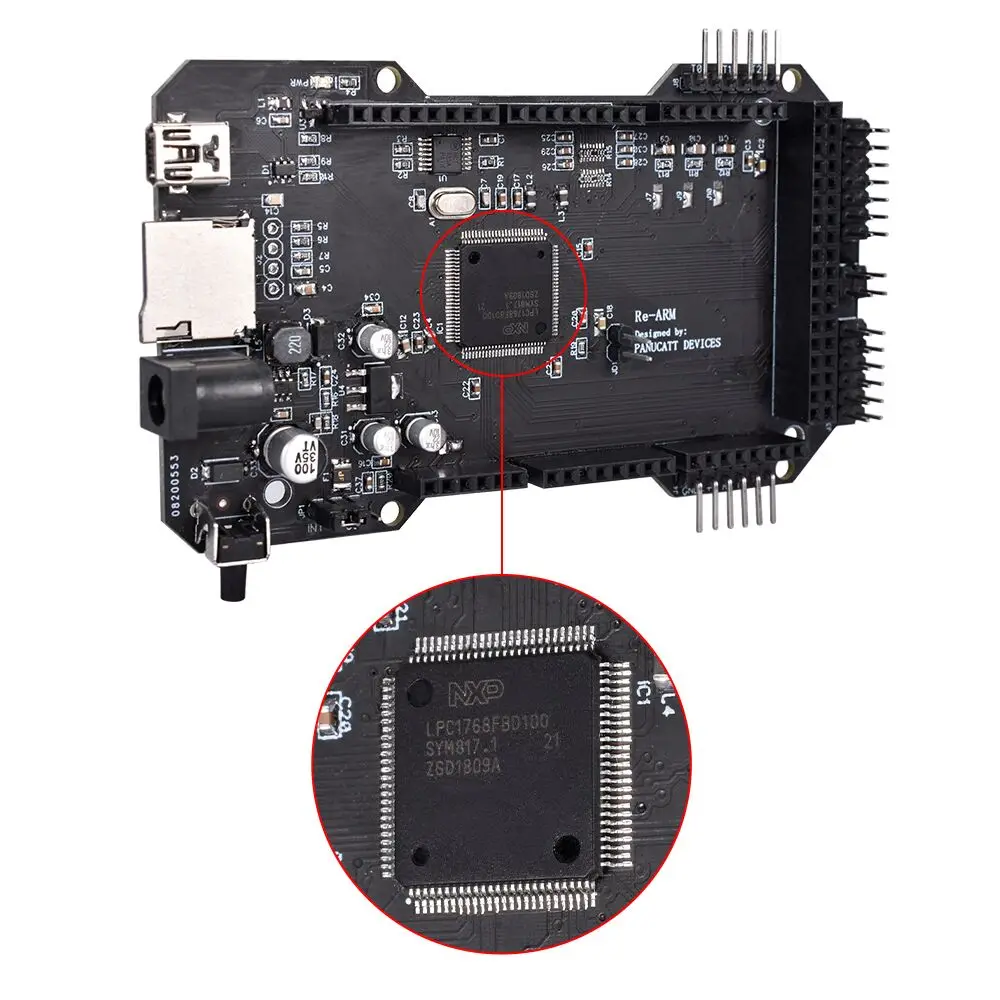

1. 32-bit LPC1768 ARM processor.

2. 100Mhz, 512kb Flash.

3. mini B USB – Prototype photos shows USB B.

4. 3.3V system voltage.

5. 10-30V power supply input range, using Vin pin or barrel jack.

6. 1 Heated bed, 2 Hotend Mosfet drivers.

7. SD card slot for firmware upgrades and config file.

8. 6 End stops, with filter and pull-ups.

9. 3 thermistor inputs.

10. Support SPI Displays like Viki2 and mini Viki(direct) and RRD Graphic LCD(adapter).

11. Support for I2C and parallel character LCDs using universal adapter by Jim Morris.

12. Header breakout for Ethernet module (RJ45) daughter board.

Advantage

1. More powerful processor. Faster feed rates!

2. Runs Smoothieware.

3. Easy configuration using a text file on SD card, no need to upload firmware every setting change.

4. SD card appears as a drive in windows. Easy drag and drop new firmware or edit the config file.

5. Capable of running smaller micro-step stepper drivers. Like the 1/128 micro-stepping SD6128 driver.

6. Available Ethernet RJ45 add-on Module.

7. Run graphic LCDs with your Deltas without hiccups.

8. Run 2 SD cards, one for settings and firmware(onboard) and the other for file loading (on LCD).

9. 5V tolerant pins, except for analog inputs which are at 3.3V.

10. Filtered endstop inputs.

11. Able to run CNCs, Laser cutters, and 3D printers.

Note :

When you using the TMC2130 diy with the RE-ARM, you only can use the STEP/DIR mode, because the RE-ARM does not support the SPI model and the Older LCD screens. Such as the 2 lines LCD.

1 PCS * 32-bit Motherboard RE-ARM with SD card

1PCS * 32-bit Motherboard RE-ARM without SD card

BIQU Clone RE ARM 32Bit Controller Motherboard

BIQU Clone RE ARM 32Bit Controller MotherboardBIQU Clone RE ARM 32Bit Controller MotherboardBIQU Clone RE ARM 32Bit Controller MotherboardBIQU Clone RE ARM 32Bit Controller MotherboardBIQU Clone RE ARM 32Bit Controller MotherboardBIQU Clone RE ARM 32Bit Controller MotherboardBIQU Clone RE ARM 32Bit Controller MotherboardBIQU Clone RE ARM 32Bit Controller Motherboard

BIQU Clone RE ARM 32Bit Controller Motherboard

Additional information

Item Type

Motherboard

Model Number

MKS Gen V1.4

Brand Name

BIQU

Product Name

RE-ARM

Usage for

3D printer

Type

Motherboard

Product Size

62mm*108mm

Place of Origin

Guangdong,China(Mainland

Master operating voltage

3.3V

USB input voltage

5V

Frequency

100MHz

Suitable for

Ramps 1.6 plus/ramps 1.6/ramps 1.5/ramps 1.4

Controller board

32 Bit

Color

Black

DC head input voltage

4.5V-36V

Supprot Display

LCD
