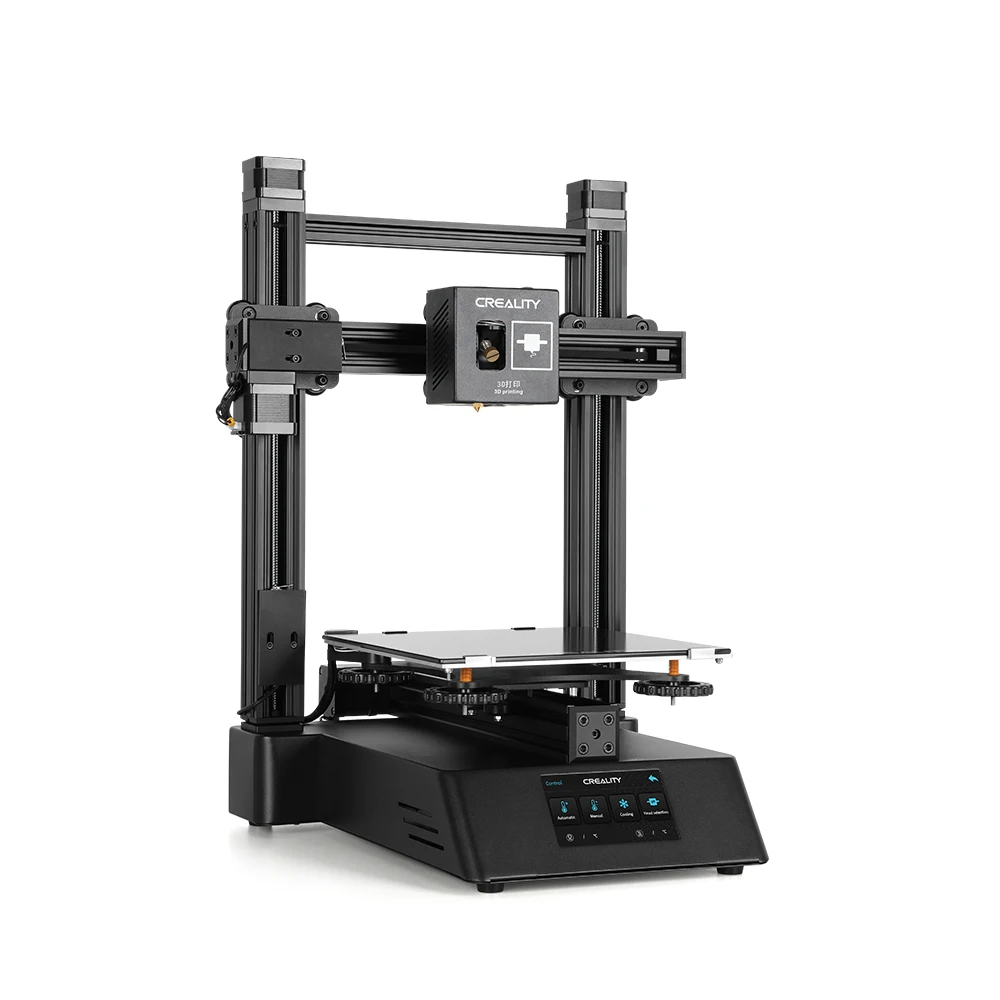

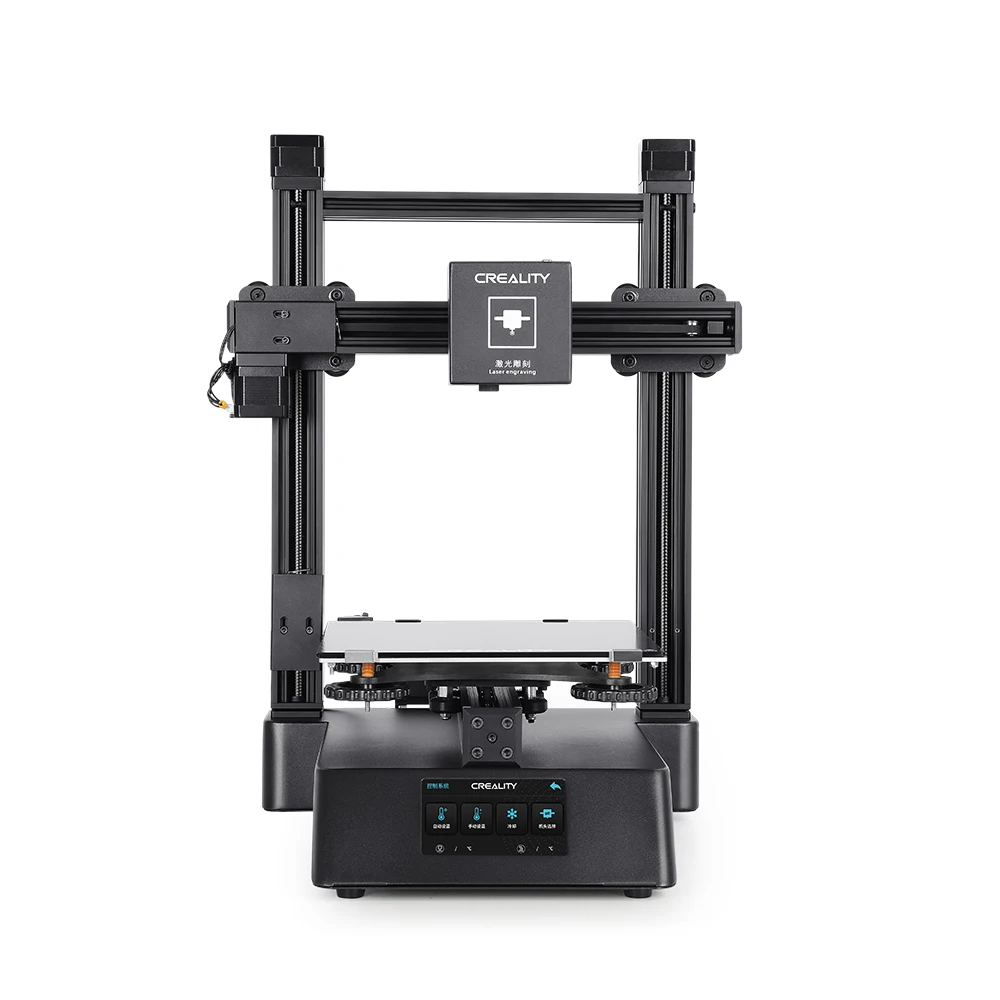

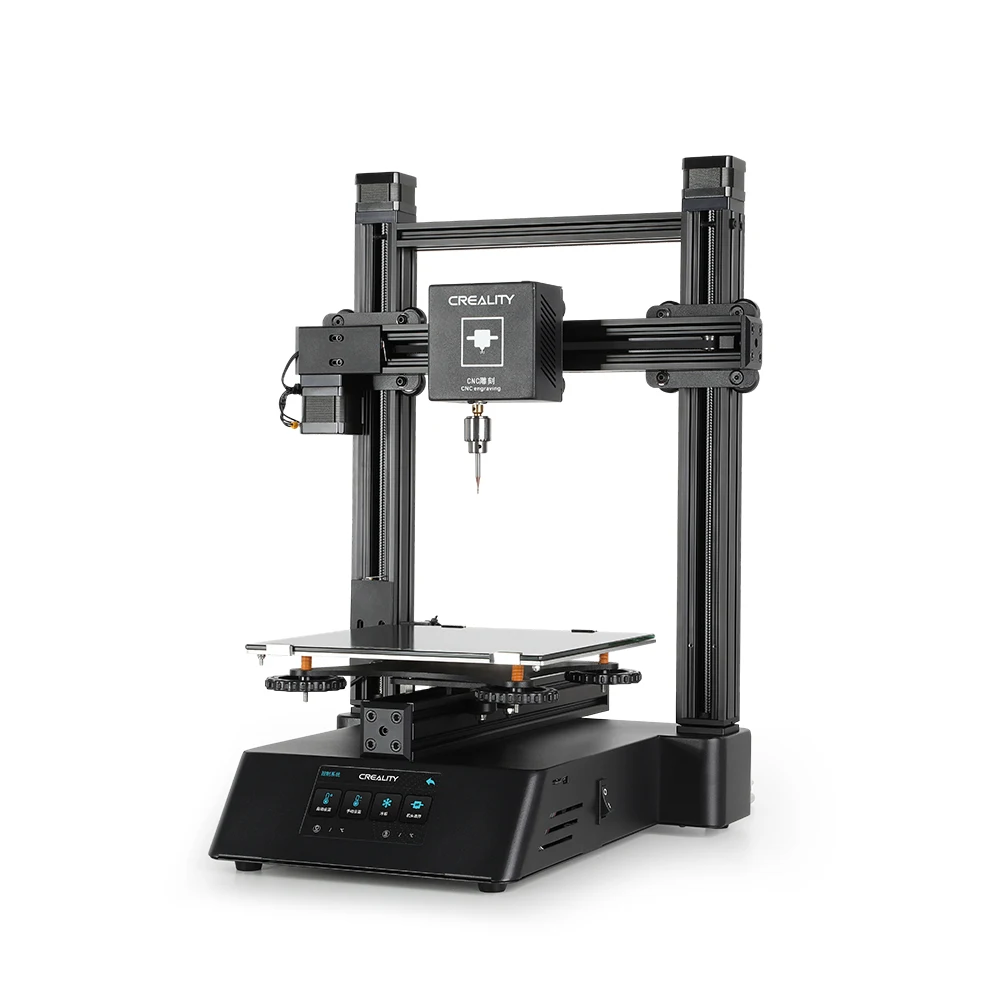

Original CREALITY 3D New CP-01 3 IN 1 Print 4800RPM Laser Engraving 3D Printing CNC Cutting Function

Description

Original CREALITY 3D New CP-01 3 IN 1 Print 4800RPM Laser Engraving 3D Printing CNC Cutting Function

Printer specification:

1. Molding platform size : 200 × 200 × 200mm
2. CNC engraving / cutting: 200 × 200mm
3. Laser engraving: 100 × 190mm
4. Printing accuracy : ±0.1mm
5. Print layer thickness 0.1-0.4mm
6. Nozzle diameter 0.4mm (0.6mm, 0.8mm, 1.0mm, 1.2mm optional)
7. Printing speed 10-80mm/s
8. Software requirements
9. Random software Cura, Simplify3D
10. Print data format STL, OBJ, AMF
11. Operating system Windows XP/Vista/7/10, MAC, Linux
12. Consumable specifications
13. Printing materials PLA, ABS, TPU, PVA
14. Physical parameter
15. Floor working temperature ≤100°C
16. Power requirements Input: AC 100-240V, output: 24V
17. Other parameters
18. Control panel 4.3 inch touch screen
19. Connection method TF card offline printing or online printing
20. Power failure continued support
21. Product material Industrial grade aluminum profile
22. Product weight 10kg
23. Other parameters CNC engraving / cutting:
24. Support materials: wood, paper, PCB, plastic, etc.
25. File format: SVG, BMP, NG, PG, DXF
26. Spindle speed: 4800rpm Max
27. With tool size: HRC55 tungsten steel milling cutter 4F 4*1
28. Drill chuck support range: 0-4mm
29. Laser engraving:
30. Support materials: wood, paper, plastic, leather, etc.
31. File format: SVG, BMP, NG, PG, DXF
32. Laser power: less than 0.5W
33. Other features One machine three: set 3D printing, laser engraving, CNC cutting, three effects to give you a new operating experience.

• Easy assembly: The modules are interchangeable and can be assembled quickly and universally. The space for the whole machine is large. The module head can be replaced by 30 seconds.
• High-precision accuracy: 3D printing model is fine, the layer is nearly absent, the CNC cutting model is smooth, and the surface is flat; the laser engraving positioning error is small, and the engraving model is exquisite
• Support a variety of consumables: the selection of the whole machine parts is excellent, and the printing/cutting/engraving of various consumables can be realized in different modes.
• Stable operation: full belt drive, intersecting the screw guide rail, the stability is even better, to ensure the high quality of the model
• Mingwei Power Supply: High-quality wide-voltage power supply, mature technology, safe and secure, automatic voltage regulation, easy to use

Pronduct Details:
