Sale!

New Arrival Laser engraver cutting marking upgrade DIY kit for zonestar P802/D805/D806/Z5/Z6/Z8/Z9/Z10 series 3D printer machine

Original price was: $79.90.Current price is: $67.92.

SKU: 32783446650 Category:

Description

!!!New Arrival!!! Laser engraver cutting marking Upgrade Kit

For P802/D805/D806/Z5/Z6/Z8/Z9/Z10 3D printer machine

Note:
1. This item is a upgrade kit, not a printer kit, and the accessories of your order will depend on the option you choose.

2. Download document from Link: http://drive.google.com/drive/folders/0B9Z1DbrxfqbpLUd1d0NfZng5cmc

3. Engraving materials: wood,bamboo,plastic(part),leather,paper,bank cards,discount cards(non-metallic), rubber-stamp, etc. This kit can’t engrave metal and transparent materials.

4. If you don’t know how to choose the option, please leave message to us, we will reply you ASAP.5. Materials can be engraved includ: hard wood, plastic, bamboo, rubber, leather, cut paper or other flammable materials(such as phone case, mouse, pencil, name card, wallet, plastic comb, etc).6. This laser kit can be used to cut only soft materials such as cardboard, thin wood board (<0.5mm), foam board, and non transparent acrylic (<2mm 5500mW laser).7. To prevent the laser head from burning out caused by overheating, please turn off the laser kit for at least 5 mins after 30 mins continuous working.

Item Option:

500mW: Applied to P802 Serial/D805/D806/Z5/Z6/Z8/Z9 Packing List: 1x 500mW laser engine.

1x Protective glasses.

1x bracket or print stl file

2500mW: Applied to P802 Serial/D805/D806/Z5/Z6/Z8/Z9 Packing List: 1x 2500mW laser engine.

1x Protective glasses.

1x bracket or print stl file

5500mW: Applied to P802 Serial/D805/D806/Z5/Z6/Z8/Z9 Packing List: 1x 5500mW laser engine.

1x Protective glasses.

1x bracket or print stl file

500mW for Z10:Applied to Z10Packing List:1x 500mW laser engine with connector for Z10 control box.

1x Protective glasses.

1x bracket or print stl file.

2500mW for Z10:Applied to Z10Packing List:1x 2500mW laser engine with connector for Z10 control box.

1x Protective glasses.

1x bracket or print stl file.

5500mW for Z10:Applied to Z10Packing List:1x 5500mW laser engine with connector for Z10 control box.

1x Protective glasses.

1x bracket or print stl file.

Additional information

Weight 0.8 kg
Dimensions 20 × 20 × 15 cm
Brand Name

ZONESTAR

Color Print Speed

0~100mm/s

Model Number

Laser engraver

Output power

500mW/2500mW/5500mW

Work voltage

12V

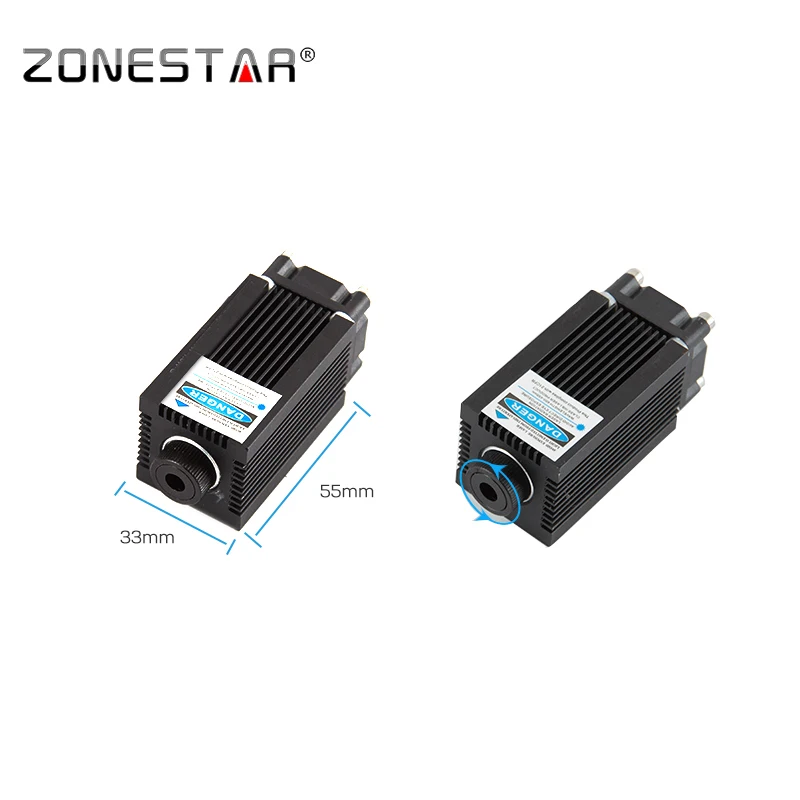

Overall dimensions

33mm*55mm(focusing)

Visible light

450nm
