Ramps 1.6 Expansion Control Panel with Heatsink Upgraded Ramps 1.4/1.5 for arduino 3D Printer Board

$3.65 $3.07

SKU: 32971662146 Category:

Description

1,It can be extended to LCD and other parts.

2,There are heater and fan MOSFET outputs and 3 thermistor interfaces

3,5A additional security and component protection fusion

4,Heated bed controls additional 11A fuses

5,Applied to 5 stepper drive board

6,Design of plate pin socket can be easily replaced or removed for future design

7,I2C and SPI pins are available for future expansion

8,Servo connectors are used for connecting limit stops, motors and light-emitting diodes. These connectors are gold-plated and have a rated current of 3A, which is very compact.

9,The LED will light when the heater has output

10,choose 2 motors to connect to Z Prusa Mendell

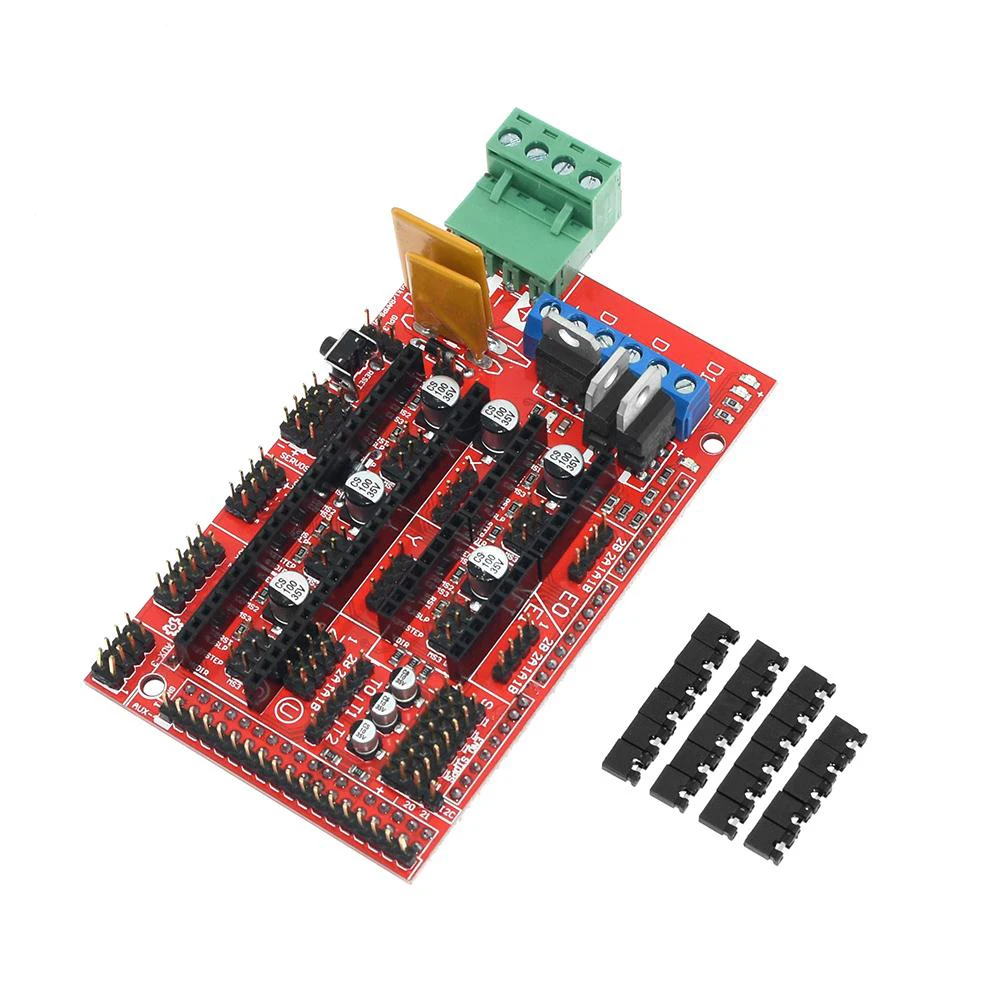

Ramps 1.4

It has Cartesian robots and regulations of the extruder .

Extended to control other accessories.

Heater / MOSFET outputs and three fan thermistor circuit.

Integration of additional security 5A and component protection

Control of additional heating bed 11A fuse

Suitable for 5 Pololu stepper driver board

Pololu board pin socket, so they can be easily replaced or removed for future designs .

I2C and SPI pins left for future expansion.

Hooked into all MOSFET PWM pin versatility.

Servo type connector is used to connect to the end stop , the motor and the light-emitting diodes. These connectors are gold-plated , rated current of 3A, very compact.

On the SD card to add – is now available from the Kliment – Sdramps

LED indicate when the heater output

Ramps 1.5

Size: 101.5 * 60.5mm

Support motor drivers: support A4988 DRV8825 and other motor drivers(support five motor drivers Simultaneously)

Input voltage: 12V

Power: 200W

Patch MOS tube: B55NF06

1,It can be extended to LCD and other parts.

2,There are heater and fan MOSFET outputs and 3 thermistor interfaces

3,5A additional security and component protection fusion

4,Heated bed controls additional 11A fuses

5,Applied to 5 Pololu stepper drive board

6,Design of Pololu plate pin socket can be easily replaced or removed for future design

7,I2C and SPI pins are available for future expansion

8,Servo connectors are used for connecting limit stops, motors and light-emitting diodes. These connectors are gold-plated and have a rated current of 3A, which is very compact.

9,The LED will light when the heater has output

10,choose 2 motors to connect to Z Prusa Mendell

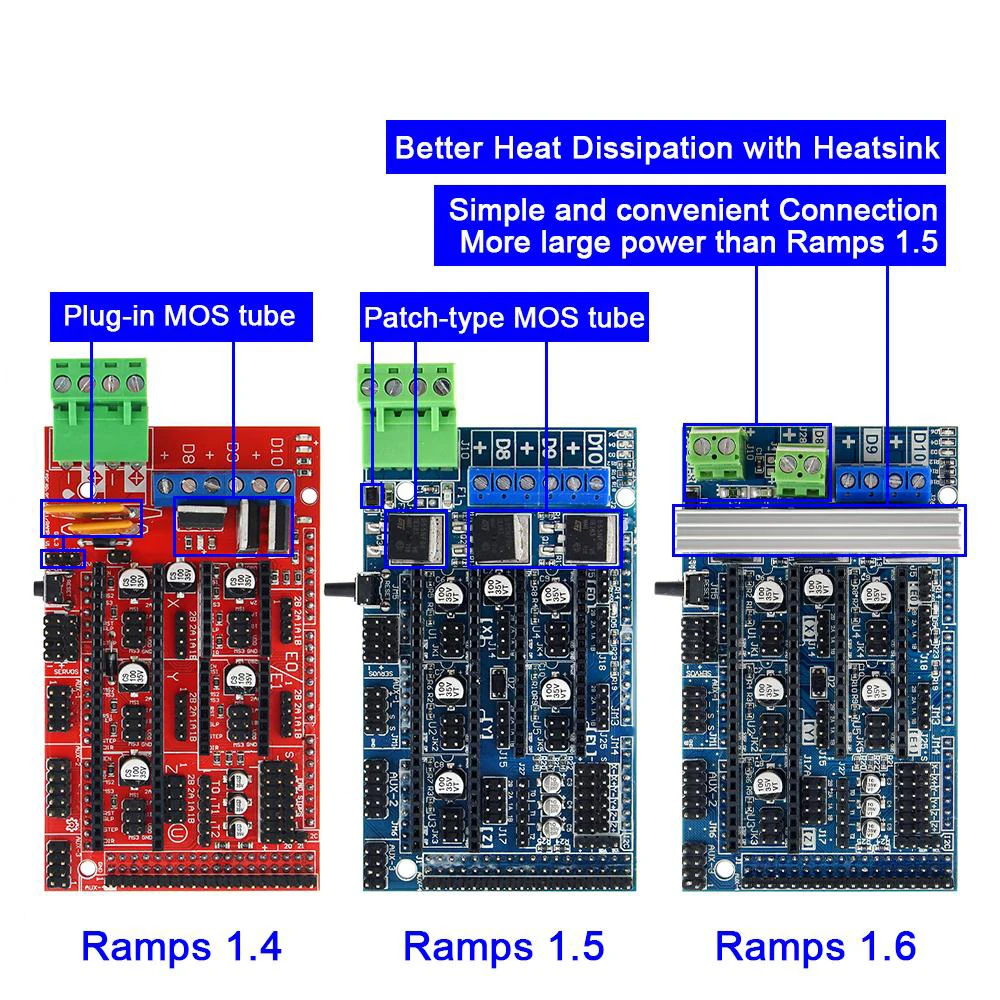

Ramps 1.6

Ramps 1.6 is optimized and launched based on Ramps 1.4 & Ramps 1.5

The Struture almost same as Ramps 1.5 , the difference is Ramps 1.6 have new 2pin connectors,which more simple and convenient to connect,also will not be burnt easily,what's more ,Ramps 1.6 have a good Heatsink above MOS tube in order to give a better function to heat dissipation .

Beside, the Power of Ramps 1.6 is more larger than Ramps 1.5, the largest power will be up to or 270W , and Ramps 1.5 just can be up to 200W, or samller than 200W.

1,It can be extended to LCD and other parts.

2,There are heater and fan MOSFET outputs and 3 thermistor interfaces

3,5A additional security and component protection fusion

4,Heated bed controls additional 11A fuses

5,Applied to 5 stepper drive board

6,Design of plate pin socket can be easily replaced or removed for future design

7,I2C and SPI pins are available for future expansion

8,Servo connectors are used for connecting limit stops, motors and light-emitting diodes. These connectors are gold-plated and have a rated current of 3A, which is very compact.

9,The LED will light when the heater has output

10,choose 2 motors to connect to Z Prusa Mendell
