Description

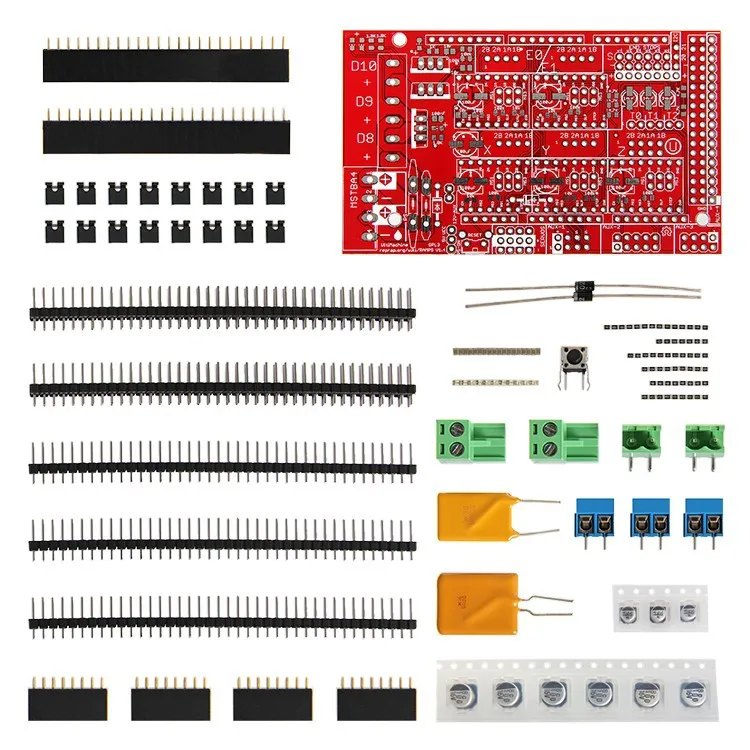

This kit includes all the connectors and all the electronic components necessary to assemble a RAMPS 1.4,you need good soldering skills for your DIY projects. RAMPS interfaces Mega with the powerful MEGA platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on MEGA shield for easy service,part replacement,upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Version 1.4 uses surface mount capacitors and resistors to further cover edge issue cases. Features It has provisions for the cartesian robot and extruder. Expandable to control other accessories. 3 mosfets for heater / fan outputs and 3 thermistor circuits. Fused at 5A for additional safety and component protection Heated bed control with additional 11A fuse Fits 5 Pololu stepper driver board Pololu boards are on pin header sockets so they can be replaced easily or removed for use in future designs. I2C and SPI pins left available for future expansion. All the Mosfets are hooked into PWM pins for versatility. Servo style connectors are used to connect to the endstops, motors, and leds. These connectors are gold plated, rated for 3A, very compact, and globally available. USB type B receptacle SD Card add on available — Available now made by Kliment – Sdramps LEDs indicate when heater outputs on Option to connect 2 motors to Z for Prusa Mendel With this RAMPS bare PCB,you need to buy necessary connectors and electronic components to assemble your iduino shield. RAMPS interfaces Mega with the powerful MEGA platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on MEGA shield for easy service,part replacement,upgrade-ability and expansion. Additionally, a number of Ar duino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack. Package List: 1 X MEGA shield RAMPS bare PCB kits USD 20.00/pieceUSD 5.60/pieceUSD 29.50/piece
