Description
About the after-sale support, pls click this link find the help:
Technical Specification
Printing
Technology: FDM (Fused Deposition Modeling)
Build Size: φ370mm(D) x 455mm(H)
Layer Resolution: 0.05-0.3 mm
Positioning Accuracy: X/Y/Z 0.0125mm
Extruder Quantity: Single
Nozzle/Filament Diameter: 0.4 mm/1.75mm
Print Speed: 20~150mm/s (suggested 60mm/s)
Supported Materials: PLA, ABS,TPU, HIPS, Wood
Temperature
Ambient Operating Temperature: 8°C – 40°C
Operational Extruder Temperature: max 250°C
Operational Print Bed Temperature: max 100°C
Software
Slicer Software: Cura, Smplify3D, Repetier-HOST
Software Input Formats: .STL, .OBJ, JPG, PNG
Software Output Formats: GCode
Connectivity: Memory card; Data cable(expert users only)
Electrical
Input rating: 110V/220V AC, 50/60Hz
Working Voltage: 24V DC
Physical Dimensions
Printer Dimensions: 580mm×520mm×1020mm
Package size: 1070mm×554mm×215mm
Net Weight: ~19.2kg
Gross Weight: ~29.5kg

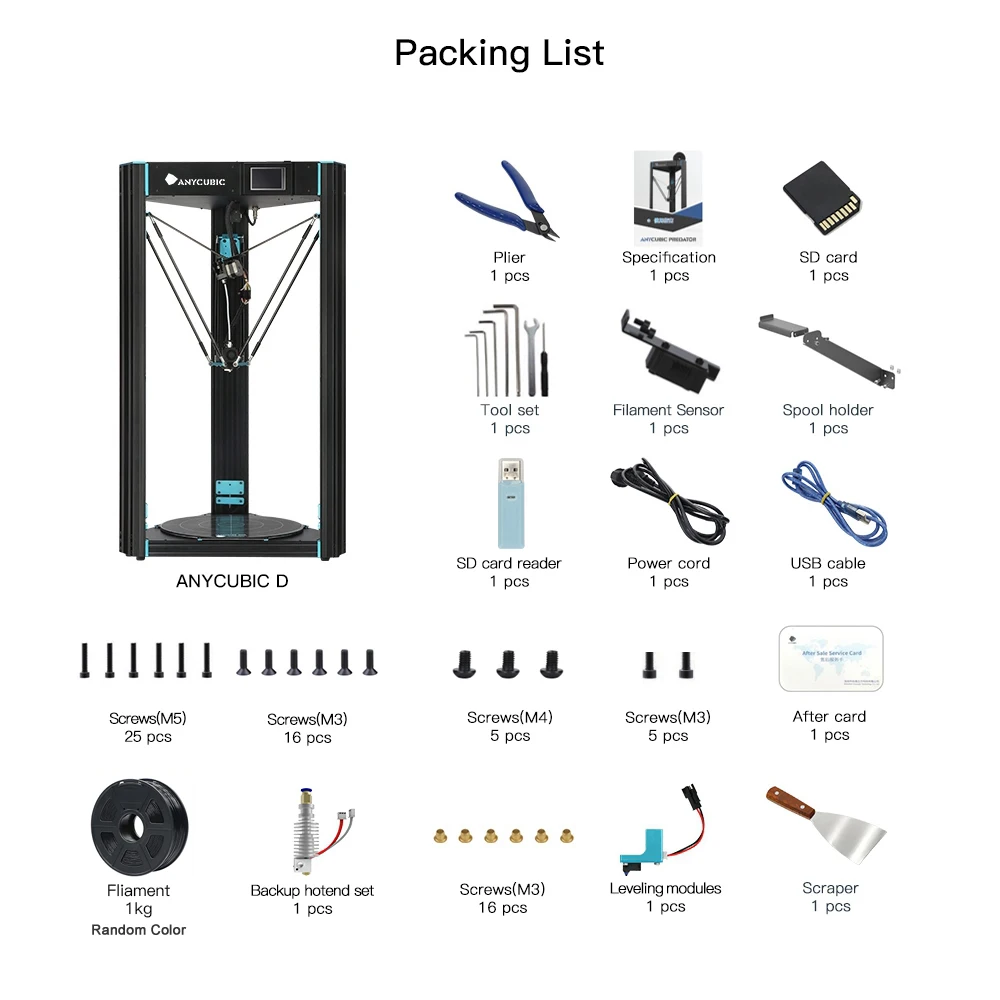

Parts list
Tool kit *1 Screw bag(M5 * 25)*1 Screw bag(M3 * 16)*1 Screw bag(M4 * 5)*1 Screw bag(M3 * 5)*1
Leveling module*1 Filament sensor*1 SD card*1 Card reader*1 Power cord*1 Spool holder*1
Scraper *1 Pliers*1 USB cord*1 Service card*1 User manual*1 PLA filament *1 Nozzle*1
