Geeetech B9shield choose shield B9 Creator for your 3d printer main board


SKU: 1905943548 Categories: ,

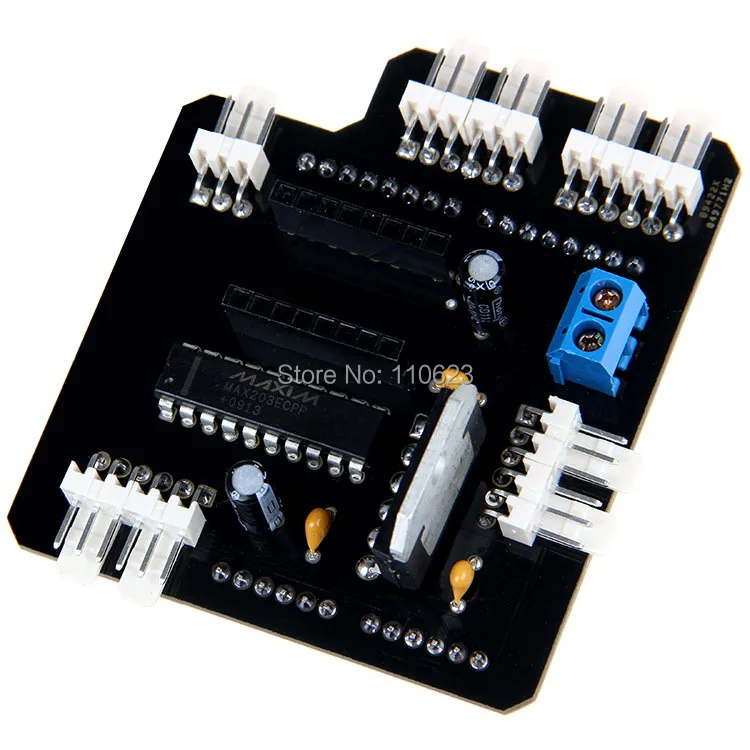

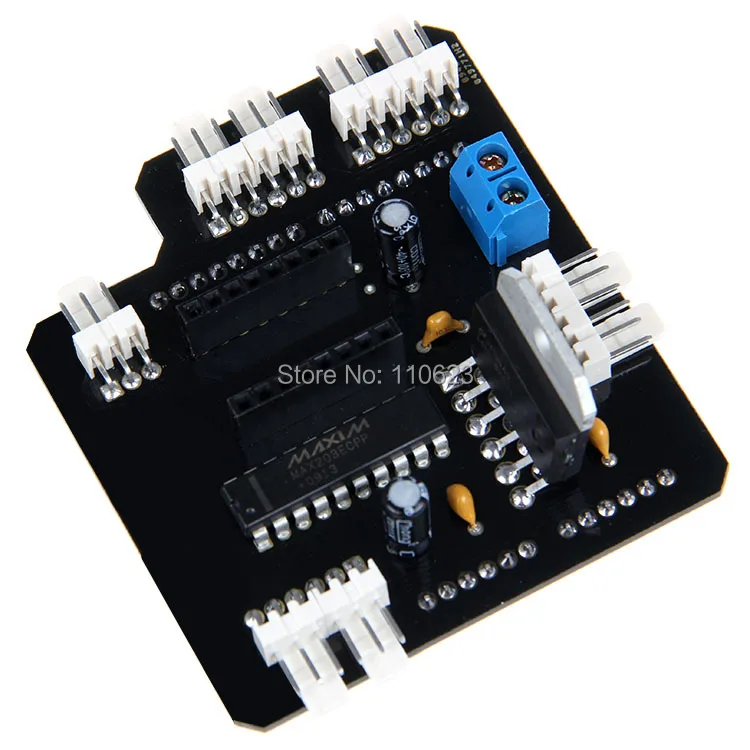

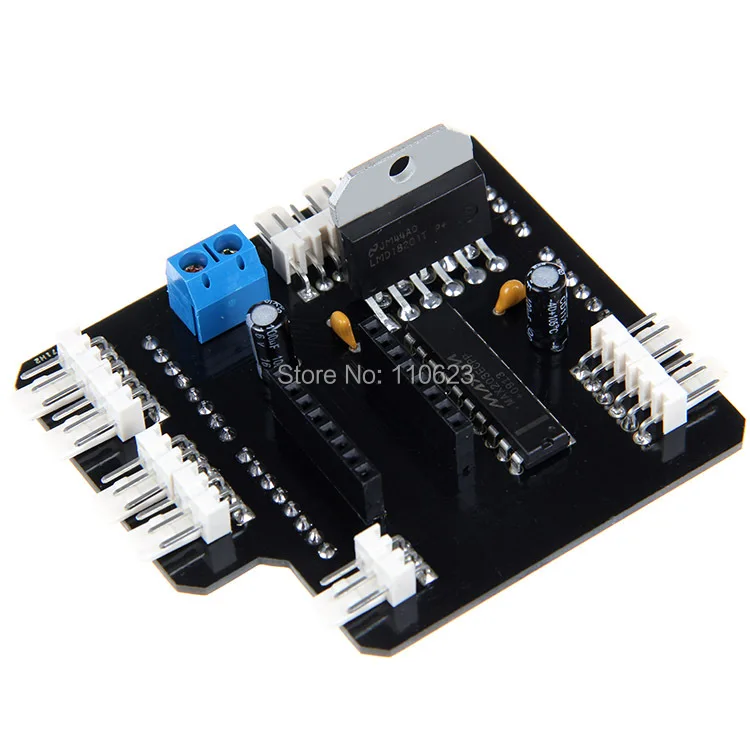

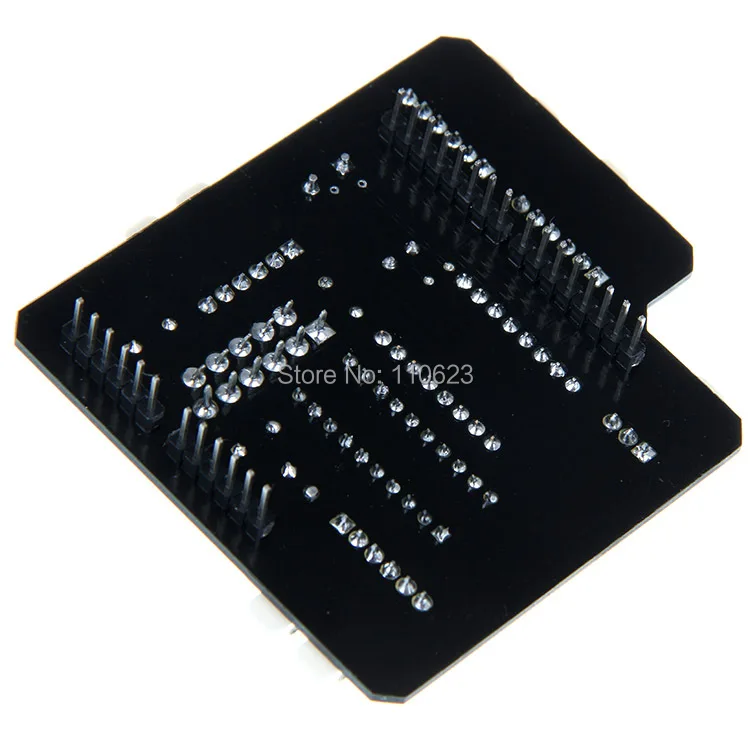

B9Shield The B9Shield uses the widely available Arduinoly Unoly open source hardware microcontroller to implement a simple 3D Printer Application Programming Interface (3DPAPI). We support and encourage all 3D printer software developers to easily adapt their software to our machine via this API. Likewise, as our software expands and improves we hope to use it to run any future resin based printers which may emerge. In addition to the Unoly, we’ll be shipping a ready to use “B9Shield” which is simply an interface board that plugs into the Unoly and allows it to communicate with the Projector, the manual position input switches, the “home” optical sensors and also to control the z-axis stepper motor and the vat slide motor. You really don’t need to know how it all works (unless you want to!) Just know that the B9Shield will make assembly a breeze because there will be no soldering or wire crimping. Just plug in the pre-built wire harnesses. Features:

  • Simple step and direction control interface
  • Five different step resolutions: full-step, half-step, quarter-step, eighth-step, and sixteenth-step
  • Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates
  • Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)
  • Over-temperature thermal shutdown, under-voltage lockout, and crossover-current protection
  • Short-to-ground and shorted-load protection

Package List: 1 x Geeetech B9shield
