BIQU BIGTREETECH TMC2208 TMC2100 TMC2130 V1.1 with SPI MKS Stepper Motor StepStick Mute Driver for 3d printer control board

Original price was: $2.30.Current price is: $2.09.

SKU: 32905045397 Categories: ,

Description

USD 35.90-66.50/pieceUSD 18.79/pieceUSD 28.40/pieceUSD 8.23-31.06/pieceUSD 15.54-35.96/pieceUSD 4.68-32.81/pieceUSD 21.50/pieceUSD 35.52-65.86/piece

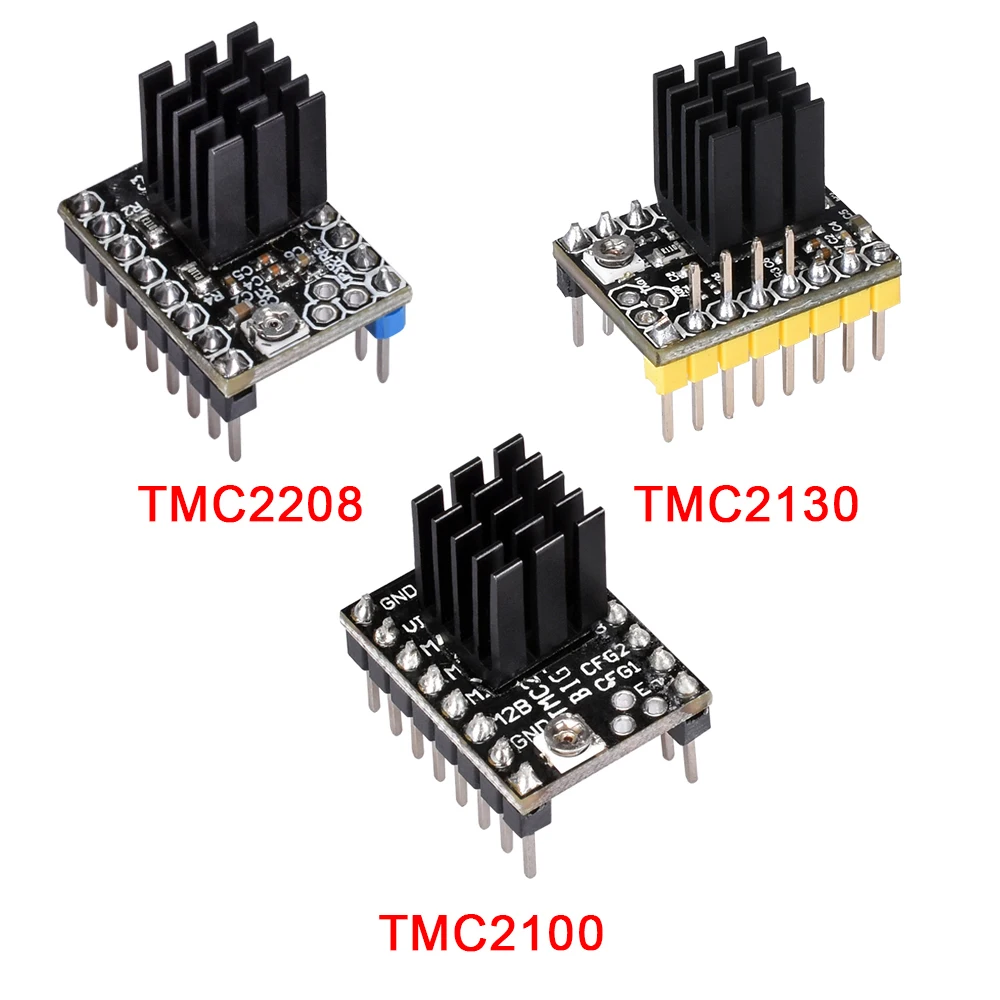

TMC2208

TMC2208 single-axis stepper motor drive chip, power tube built-in drive current 1.4A peak current 2A, voltage range 4.75V-36V, 256 subdivision; with patented technology spreadCycle ™ high chopper frequency, dcStep ™, stallGuard2 ™ stall detection technology, CoolStep ™ current dynamic adjustment technology, can save 70% of the energy, StealthChop mute technology

Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even in the pulse rate is limited system can still be perfect to achieve sinusoidal control; As stealthChop fine music technology is widely used in 3D printing, so These components are also designed to be compatible with existing 3D printer electronics, eliminating the need for costly redesign. Both components have pulse / direction input, can be completely independent operation. The configuration is implemented via digital input.

Can replace the original TMC2100 ,lower heat, especially for the 3D printing market!!!

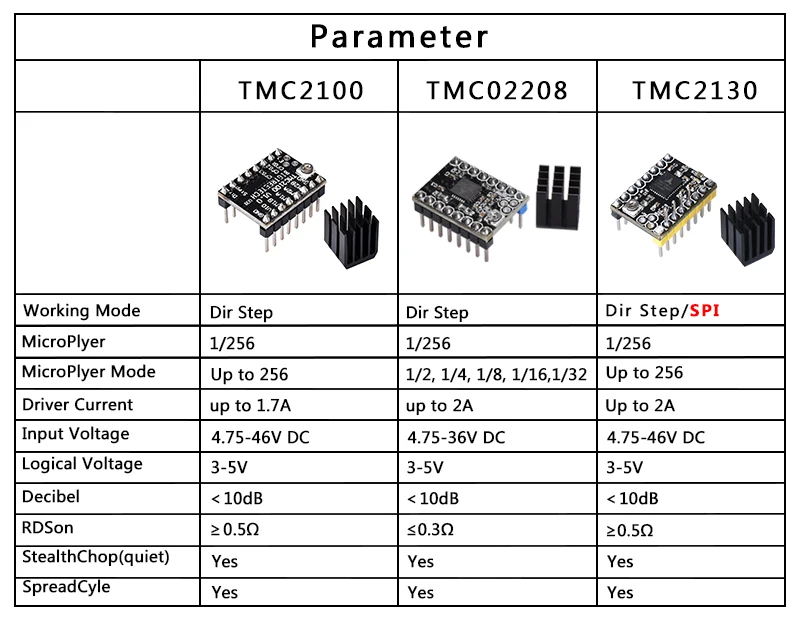

Parameter:

Configuration:CFG or UART

microsteps: Up to 1/256

microPlyer: 1/256

Logic Voltage VI0: 3-5V

Motor Voltage : 5.5-36V

Motor Phase Current: 1.2A RMS, 2.0A Peak

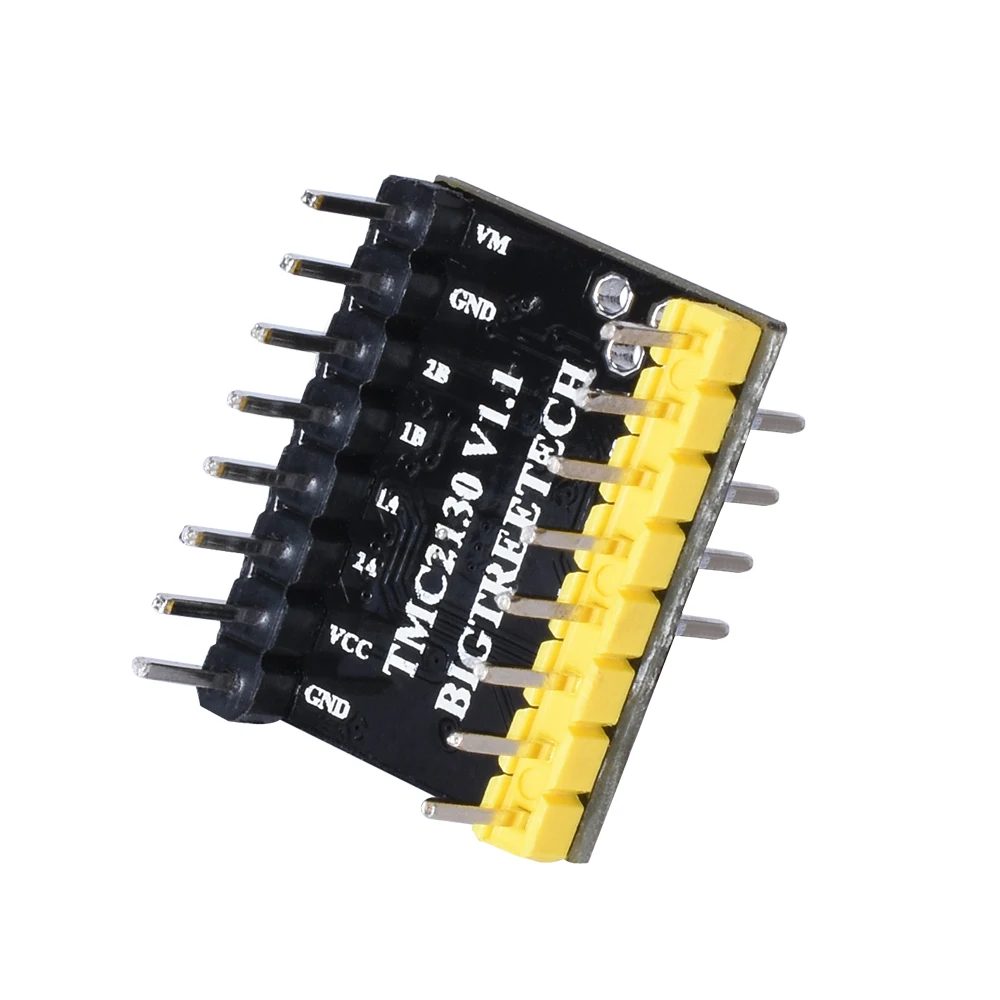

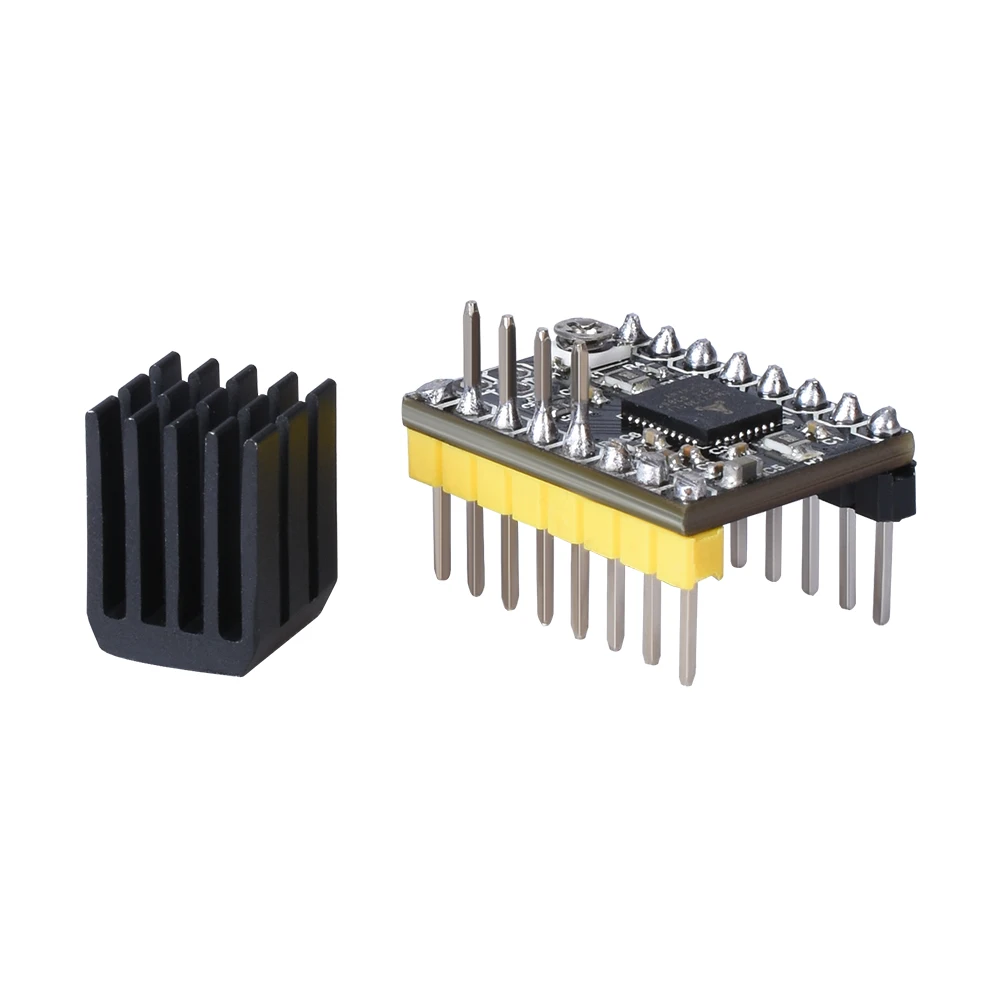

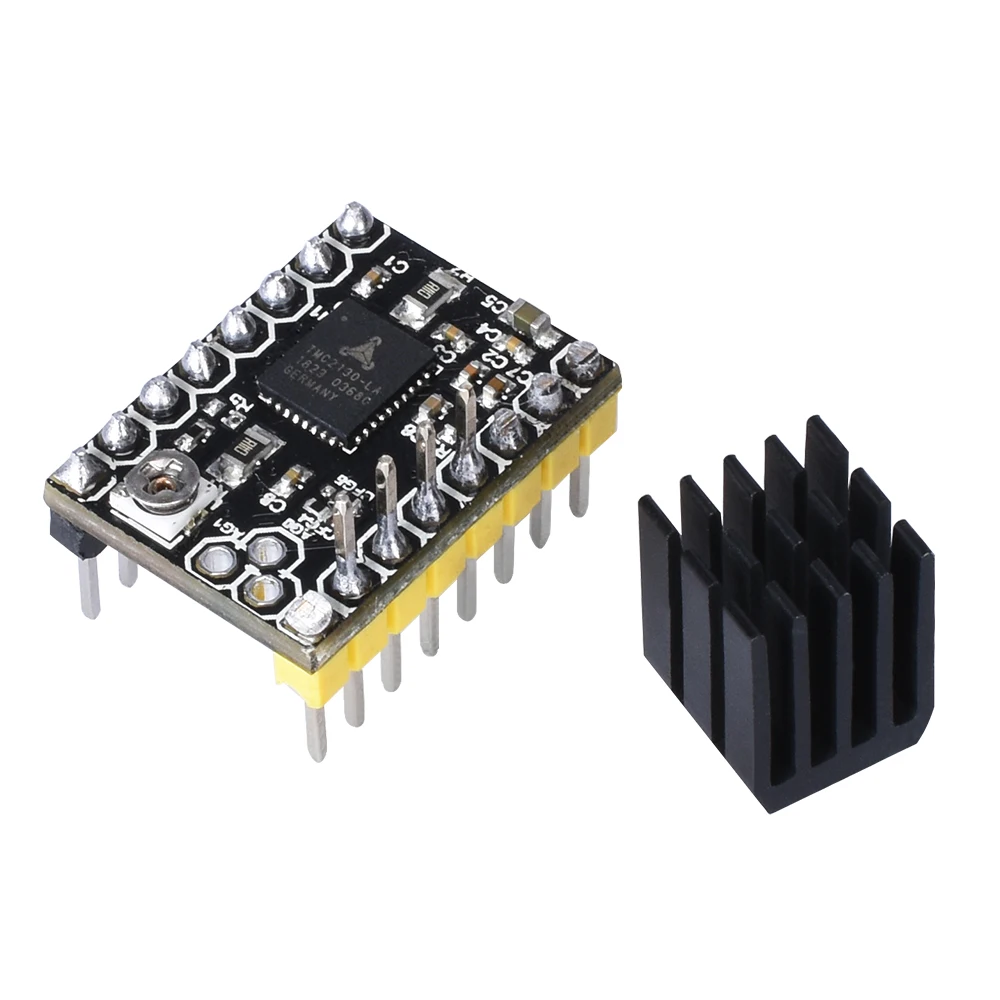

TMC2130V1.1

Features:

  • Supports three control modes of SPI/STEP/DIR interface .
  • Combined maximum efficiency and optimum motor torque operation without noise.
  • High accuracy no sensor motor load detection
  • High load driver will not lost step.

Parameter

Configuration:CFG

microsteps: Up to 1/256

microPlyer: 1/256

Logic Voltage VI0: 3-5V

Motor Voltage : 5.5-46V

Motor Phase Current: 1.2A RMS, 2.5A Peak

TMC 2130V1.1 manual can downloda:

The more details you can check the :

TMC2100

Drive current algorithm and regulation:

  • The drive current algorithm: i = Vref * 1.9 / 2.5, the default Vref about 0.65v, so the default current 0.5A, the maximum current 1A

  • Vref measures Gnd and potentiometer middle end voltage

  • When measuring voltage must not connect the motor, or easy to burn drive

  • Measuring voltage should be connected to power, do not just connect the USB power supply

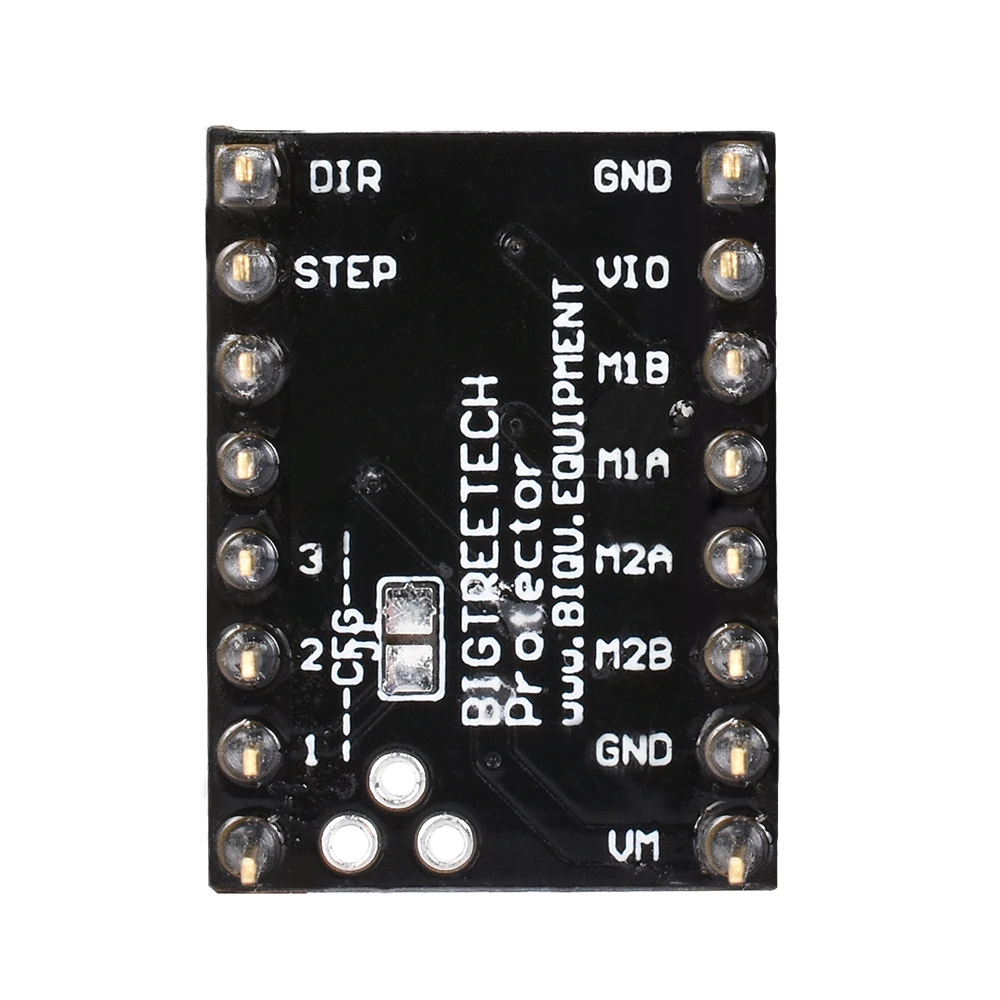

Step stick protector stepper motor Driver Away

​1.Silent stepper protection is an add-on stepper and Pololu A4988 compatible stepper motor driver. The board provides a flyback diode (free-rotation diode) for the motor output, which also resists induced voltages when the driver is not powered.

2.The v2 protector also includes a diode from the logic voltage (anode) to the motor voltage (cathode) to ensure the power sequencing of all mute stepsticks.

3.This type of eliminator is mainly used for the vibration of the 3D printer with parallel arm structure. Especially the motor with lower resistance is more effective. It can effectively eliminate the uneven signal wave at low speed and achieve a relatively flat signal. wave.

Notice : The more details you can check .

You can get the price $2.30 2 pcs with other Stepper motor together .

The option TMC2130 V1.1 wire only have cable ,not including the TMC2130 V1.1 stepper motor .

Type 1:TMC2130 V1.1 *4 pcs with wire

Type 2:TMC2208*2 pcs / TMC2208*1pcs

Type 3:TMC2100*2 pcs / TMC2100*1pcs

Type 4:TMC2130 V1.1 wire (Only wire ,not including the TMC2130 V1.1 stepper motor driver )

Type 5:Driver protector*2 pcs

Type 6:DIY TMC2130 (without wire )

About the TMC2130 driver, the driver plate-pins have yellow and black ones, we will send them randomly.

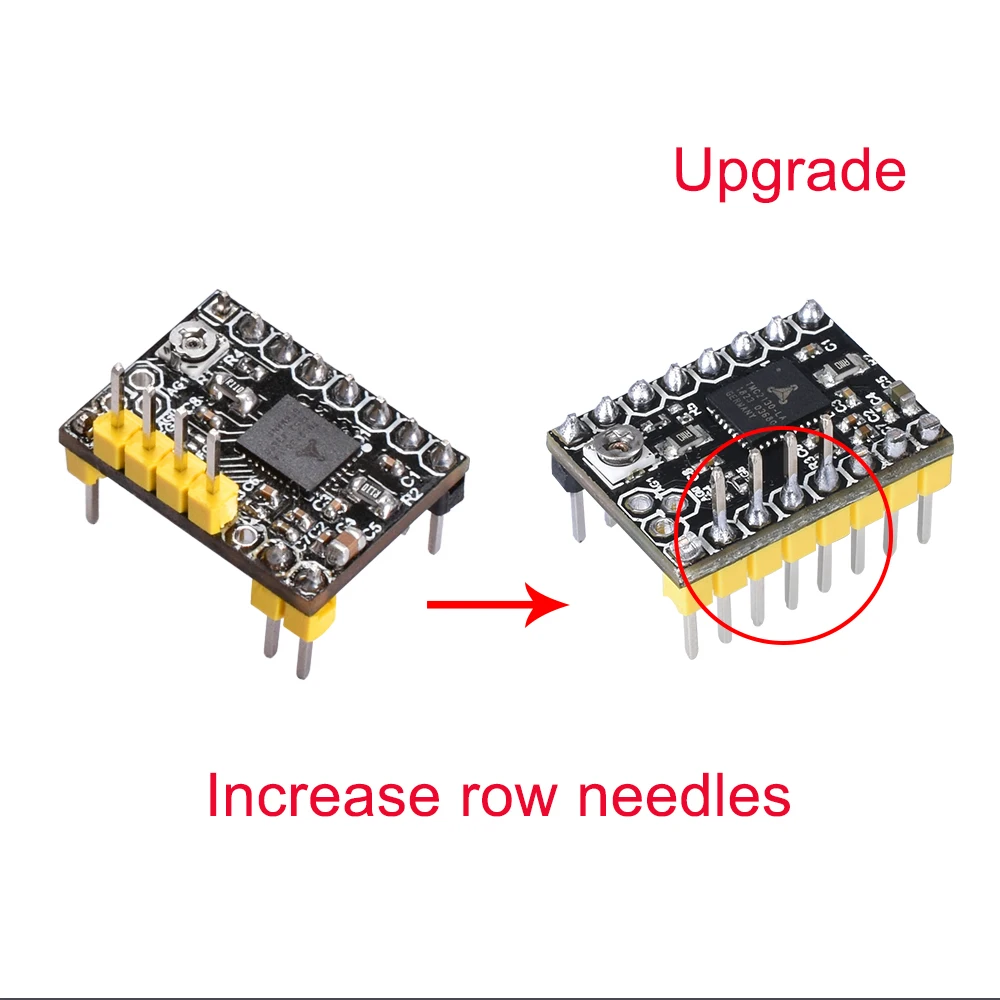

Note: we will arrange to send the new upgrade TMC2130 driver.

DIY TMC2130V1.1 without wire

DIY 2130 V1.1 option is not wired and requires you to solder yourself when using SPI mode,otherwise ,the stepper motor is ordinary working model : Welding method: welding CFG4 to GND, CFG5 to VCC . (Please add the TMC2130 wire together,if you need to use SPI model )

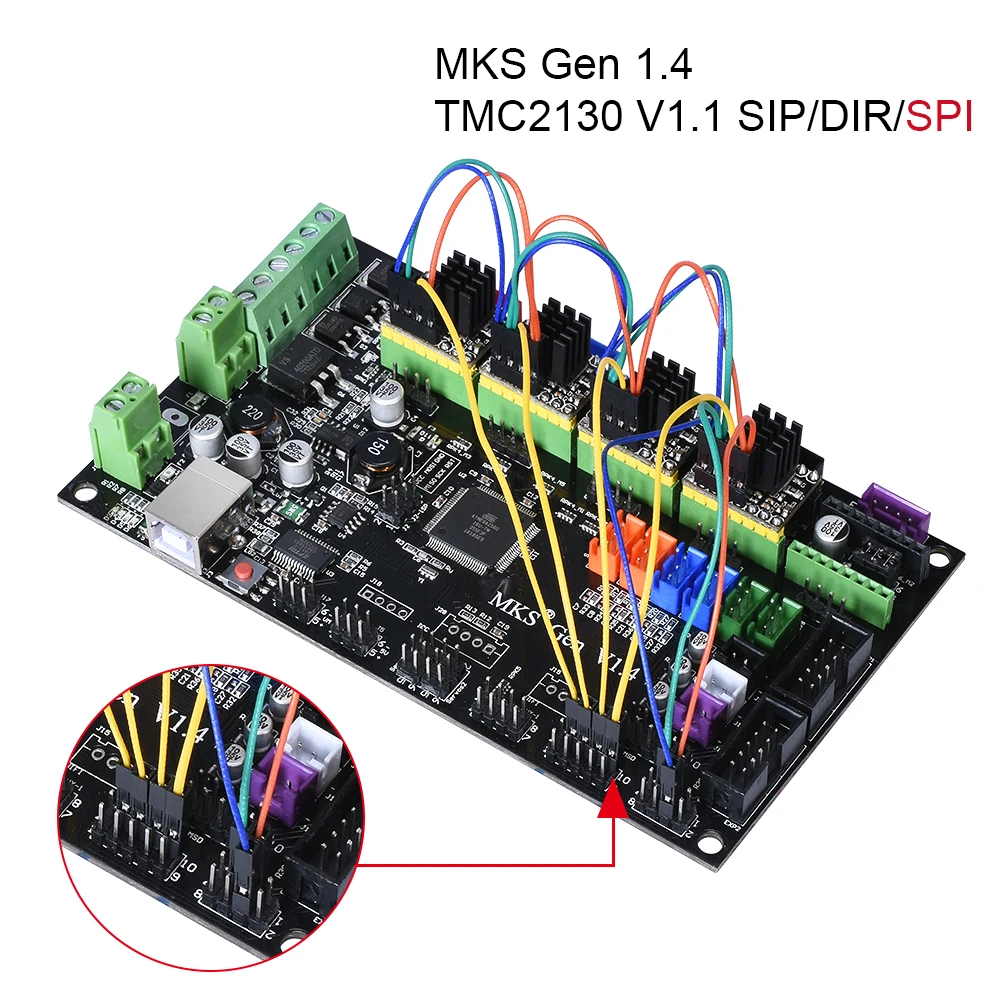

If you want to use the SPI model conveniently,we suggestion you choose this kit ,4 PCS TMC 2130 V1.1 with wire option .

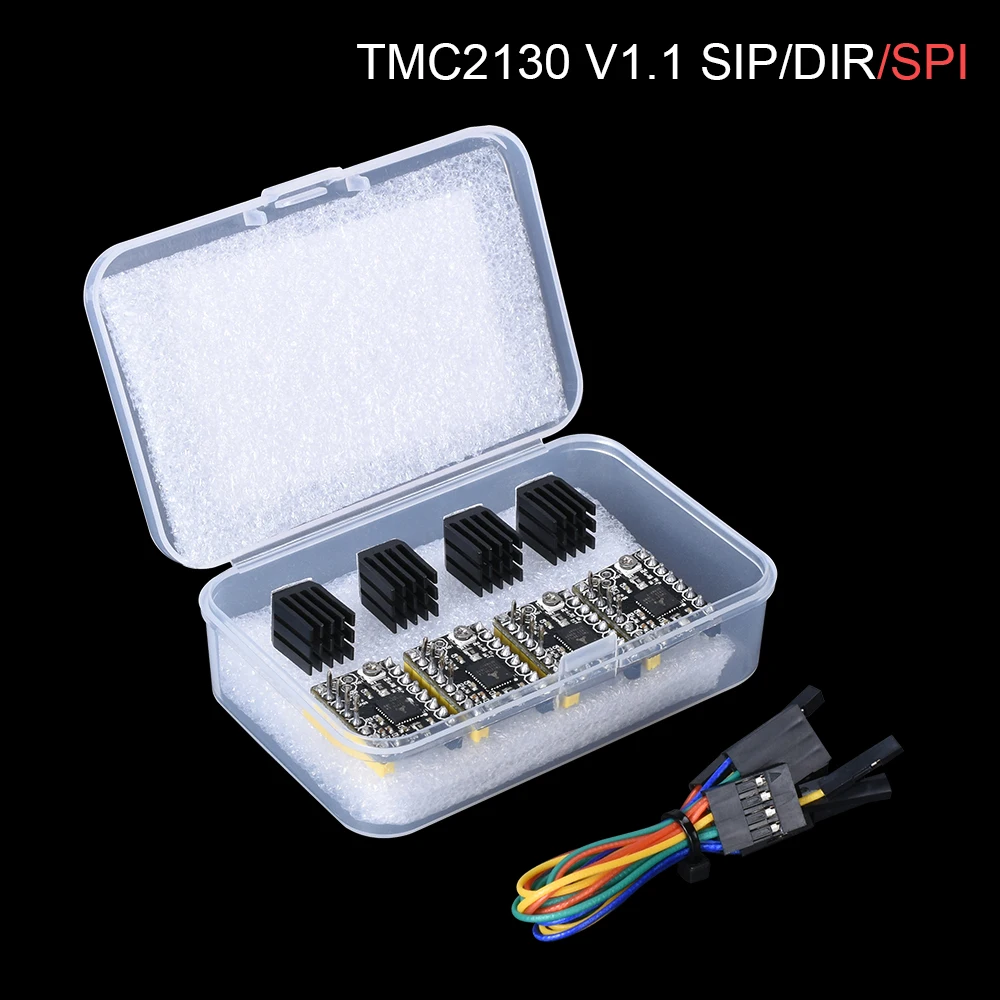

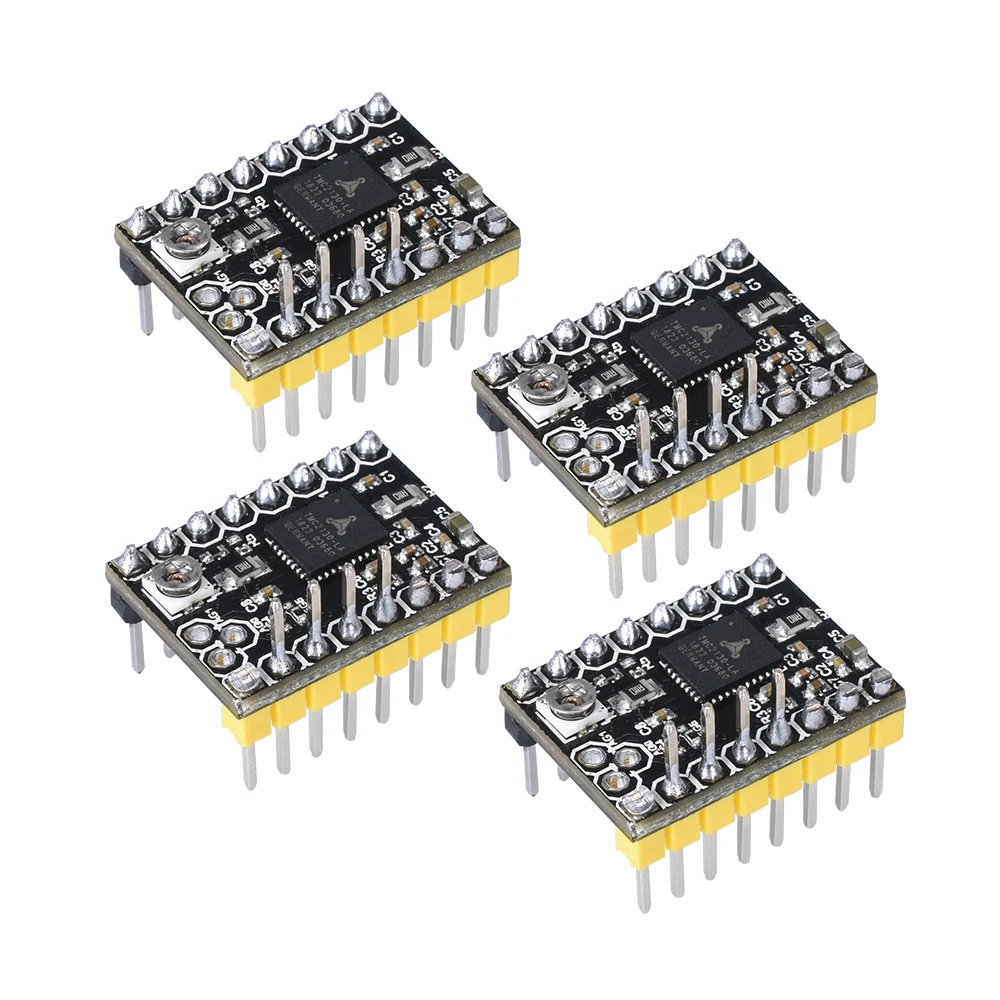

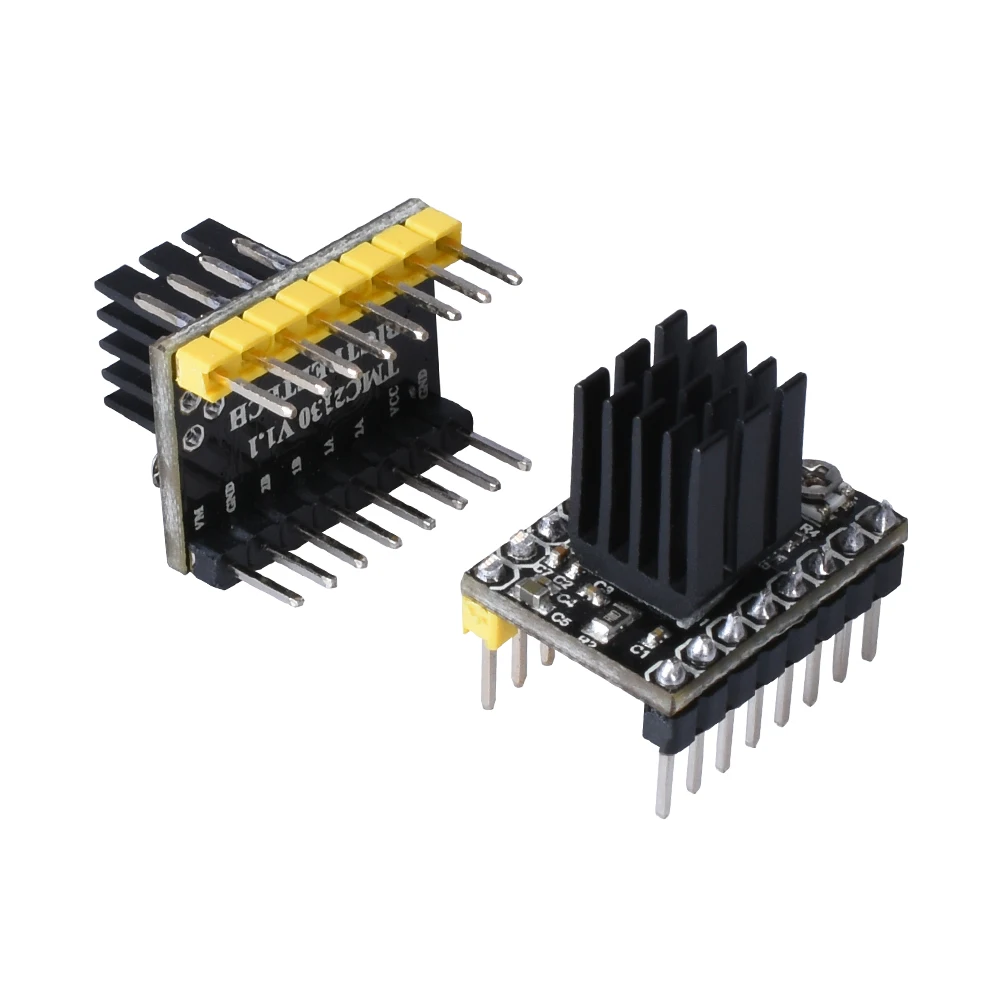

TMC2130V1.1 SPI 4pcs with wire

We have two colors of row master needle about TMC2130 V1.1 SPI ,and the colors will be sent randomly.

TMC2130 V1.1 stepper motor cable ( wire option )

The option TMC2130 V1.1 wire only have cable ,not including the TMC2130 V1.1 stepper motor .

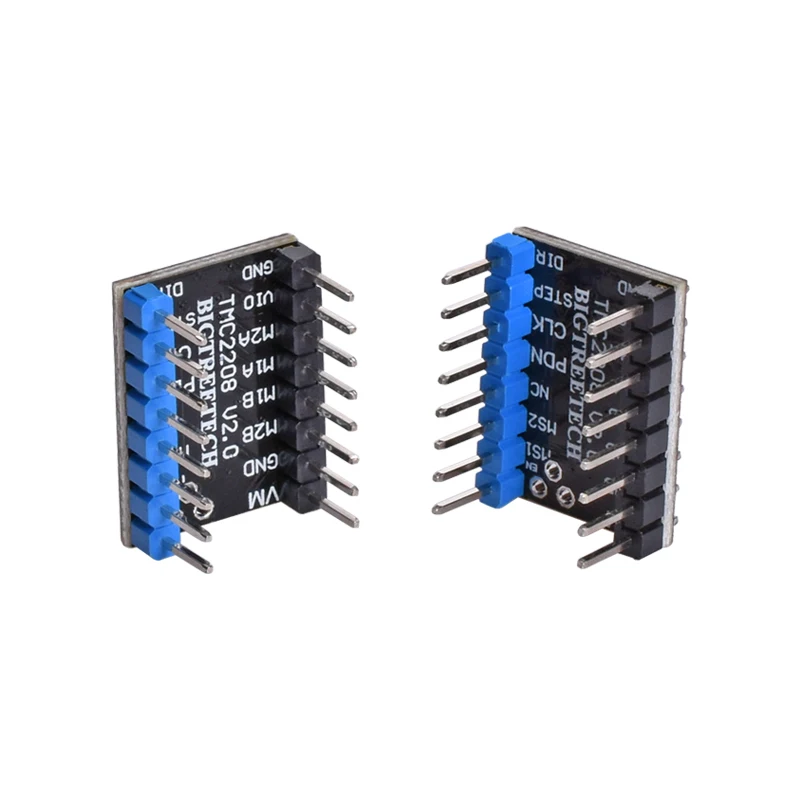

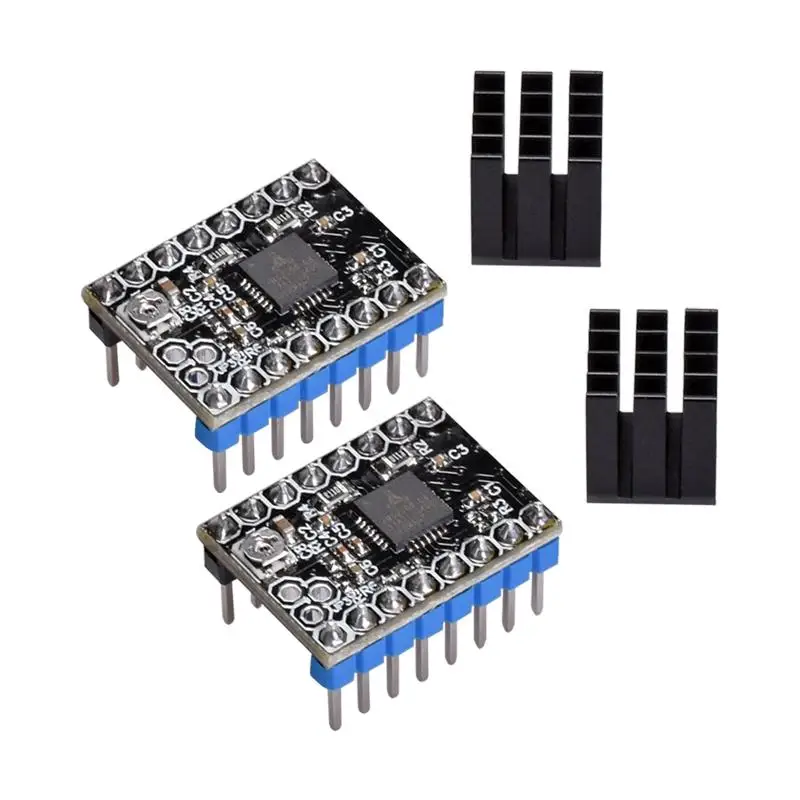

TMC2208 stepper motor driver

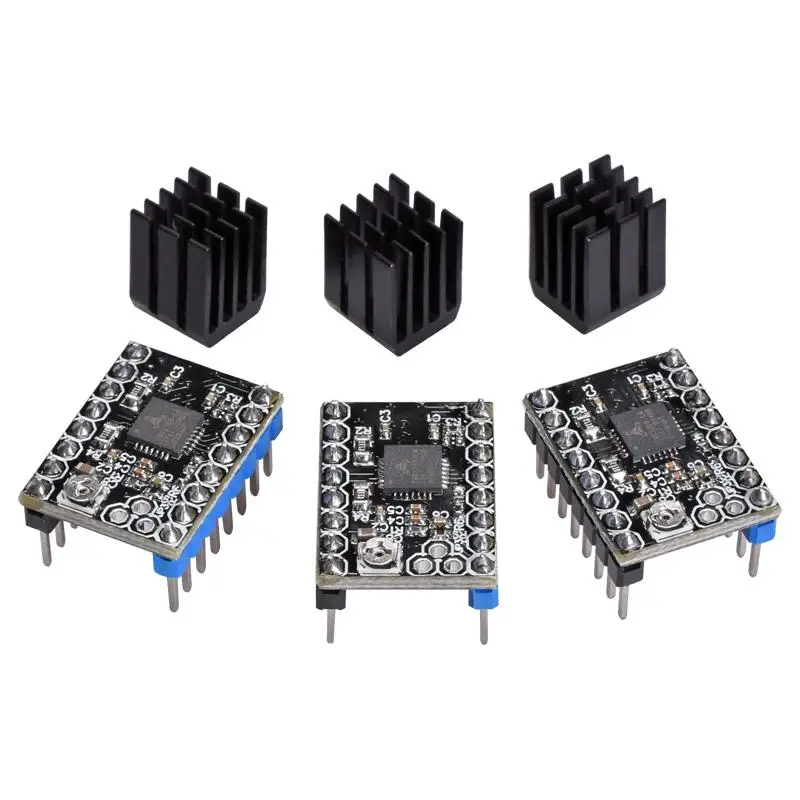

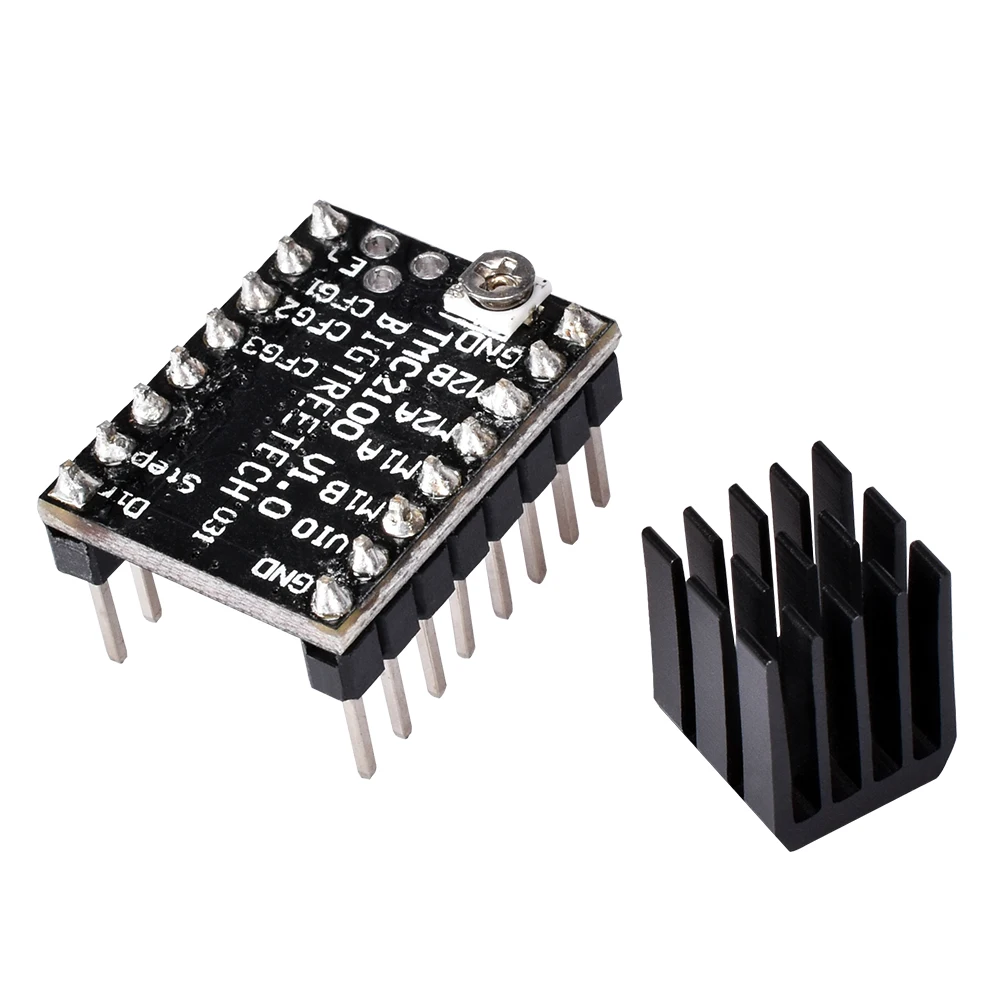

TMC2100 stepper motor driver

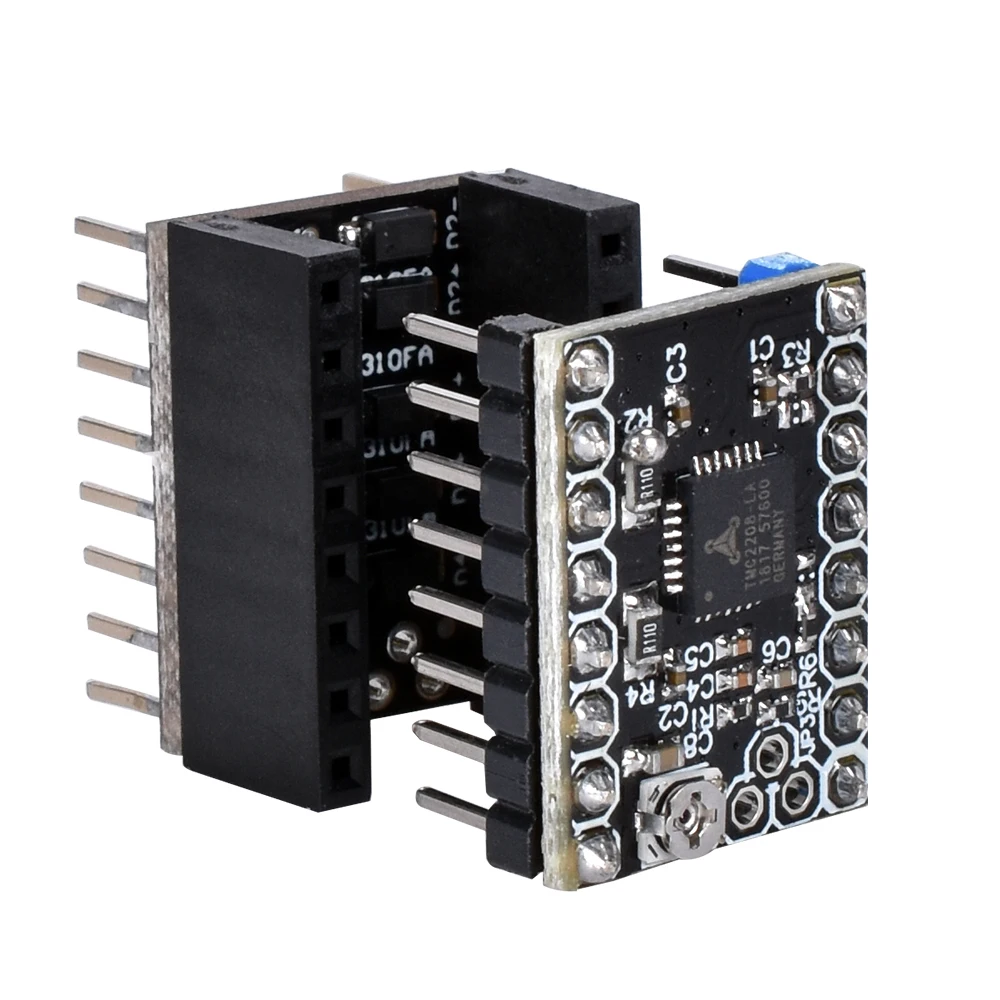

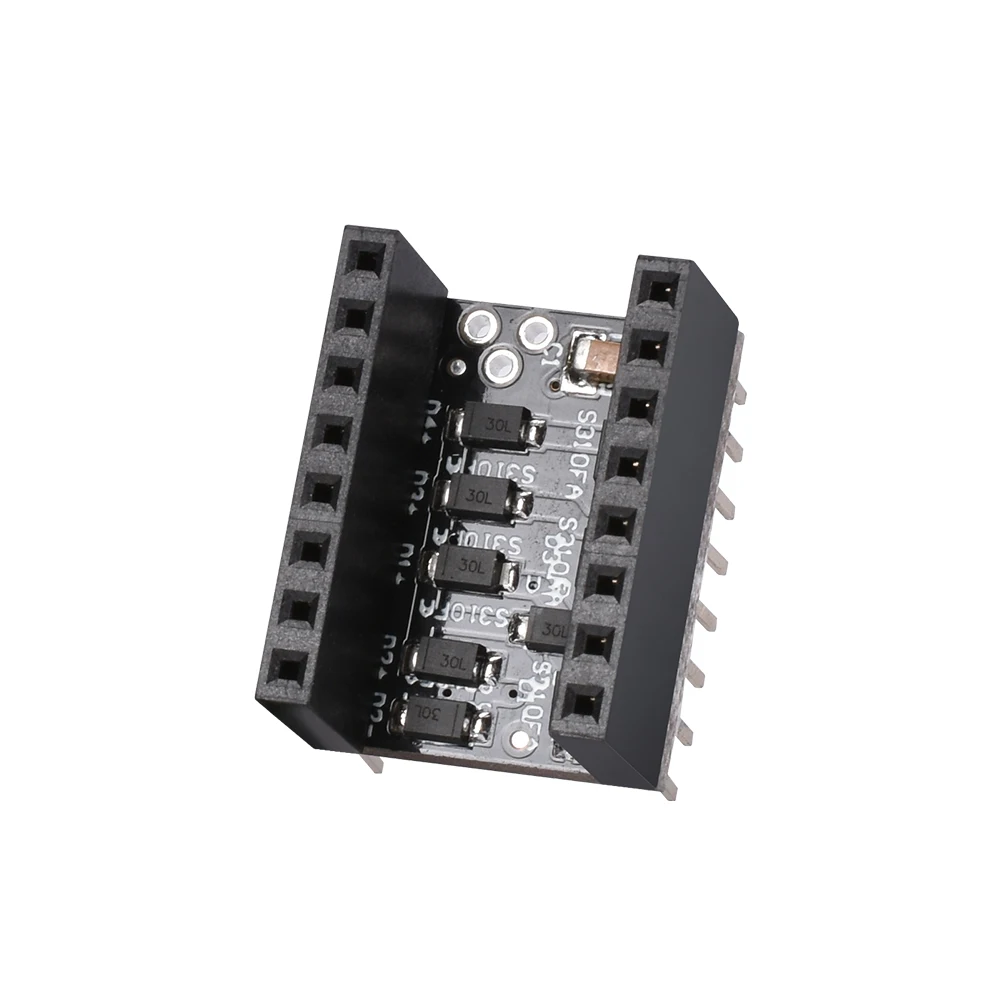

3D Printer Silent Step Stick Protector Stepper Motor Drive Protector

ordinary

Additional information

Weight 0.03 kg
Dimensions 20 × 20 × 20 cm
Brand Name

BIQU

Item Type

Driver

Model Number

TMC 2130 TMC2208 TMC 2100

Product Name

TMC2130 V1.1 TMC2100 TMC2208 V1.0 Stepper Motor

Material

PCB

Feature

Silent

TMC2130V1.1 model

SPI /DIR /STP

TMC2130 /TMC2100/TMC2208

DIR /STP

Suit for

3d printer mother board

Type

3d printer spare parts

With heat sink

Yes

Condition

New arrival 100%new
